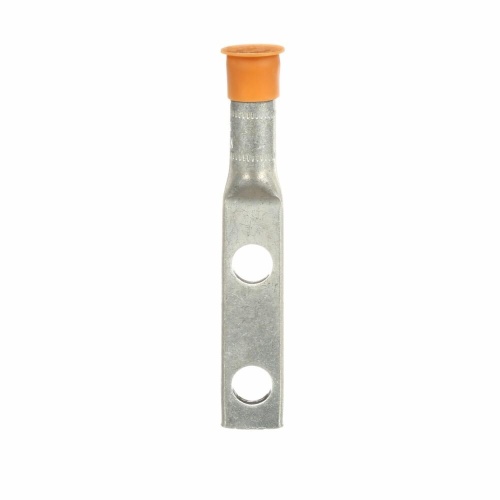

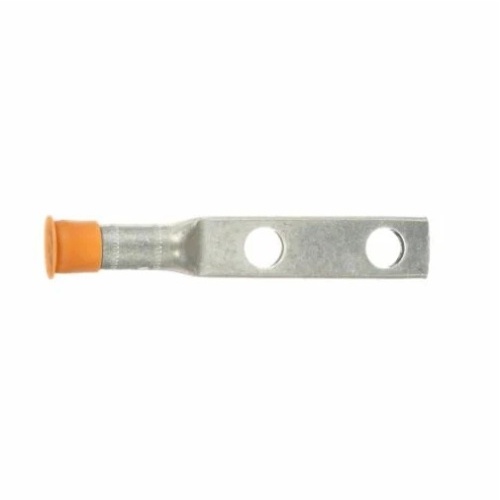

Scotchlok™ Compression Lugs (Product Type=Compression Lugs, 3MCatalog Number=40145, =Scotchlok™) are designed for use with aluminum or copper conductors. They have a maximum operating voltage of 35 Kilovolt. The lugs have a 4/0 AWG maximum conductor size and come in a case quantity of 10. The overall length is 6 inches (152.4 mm) with a standard barrel style measuring 1.94 inches (49.2 mm) in length. The lug has two stud holes and a center of hole to center of hole distance of 1.75 inches (44.5 mm). The pad dimensions are 3.38 inches (85.8 mm) in length and 1.19 inches (30.2 mm) in width. The lug is made of aluminum material and is white in color. The connector description is a two hole design with an inside diameter of 0.547 inches (13.9 mm) and an outer diameter of 0.875 inches (22.2 mm). The lug is compatible with a 1/2 inch stud size and has a center of hole to end of pad distance of 0.62 inches (15.7 mm). - 7000005891
