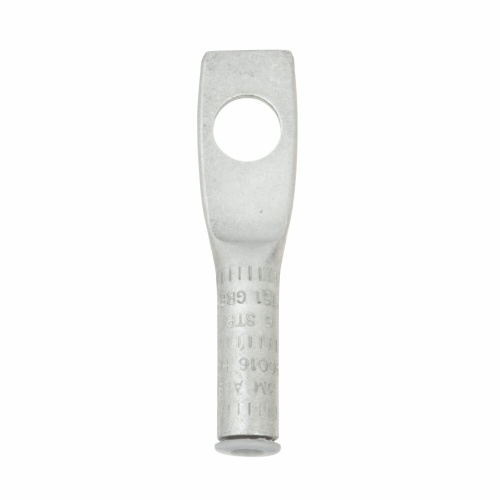

3M 7100069429 - Scotchlok™ Aluminum One Hole Lug 40057, up to 35 kV, 350 kcmil, Brown
Normally In Stock
Code: 473557
Scotchlok™ Aluminum One Hole Lug 40057, up to 35 kV, 350 kcmil, Brown - 7100069429
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$415.57
Sale Price
$346.31
SOLD BY THE CASE (1 Case = 10 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Compression Lugs, 3MCatalog Number 40057, are aluminum lugs suitable for use with aluminum or copper conductors. Their overall length is 4.32in (109.7mm), with a maximum conductor size of 350kcmil. With a brown color and standard barrel style, these lugs have an inside diameter of 0.72in (18.3mm) and an outer diameter of 1.11in. The lug has one hole and is designed for use with a 5/8 inch stud. Each case contains 10 lugs. - 7100069429
Specifications
Color
Brown
Component
Compression Lug
Material
Aluminum
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
350 Kcmil
Overall Length (Imperial)
4.32 In
Overall Length (Metric)
109.7 mm
Features
Standard barrel ensures a secure fit and offers reliable performance
Barrel sealing caps are color coded to help to indicate the wire guage
Suitable for indoor and outdoor applications
Made of aluminum for good conductivity and tin plating for corrosion resistance
Rated for 35 kV applications
