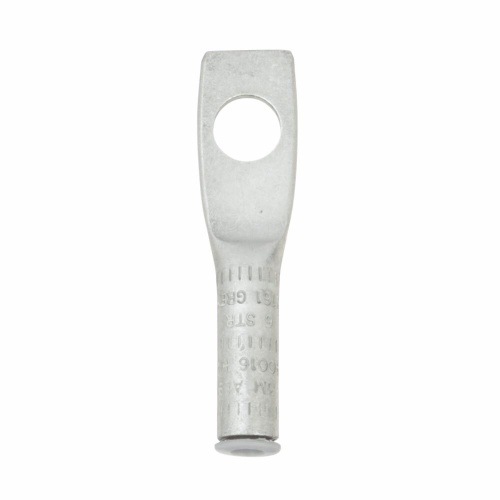

3M 7100057123 - Scotchlok™ Aluminum One Hole Lug 40053, up to 35 kV, 300 kcmil, Blue
Normally In Stock
Code: 473555
Scotchlok™ Aluminum One Hole Lug 40053, up to 35 kV, 300 kcmil, Blue - 7100057123
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$421.19
Sale Price
$350.99
SOLD BY THE CASE (1 Case = 10 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

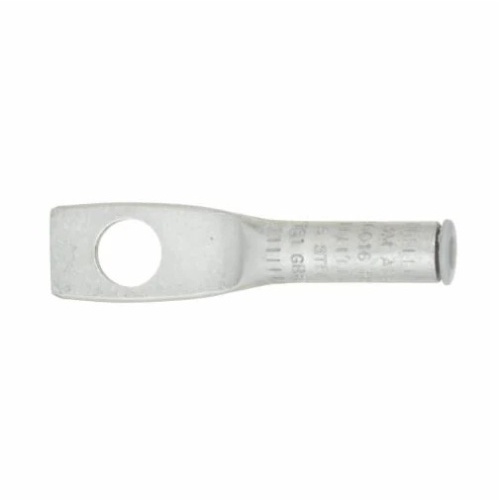

Scotchlok™ Compression Lugs are aluminum lugs designed for use with aluminum or copper conductors. They have a maximum conductor size of 300 kcmil and a maximum operating voltage of 35 Kilovolt. The lugs have a standard barrel style with an overall length of 4 inches (101.6 mm) and a barrel length of 2.2 inches (55.6 mm). They are dark blue in color and come in a case quantity of 10. The lug has one hole and is compatible with 1/2 inch stud sizes. The pad has a length of 1.31 inches (33.2 mm), a width of 1.38 inches (34.5 mm), and is positioned 0.625 inches (15.9 mm) from the center of the hole to the end of the pad. The inside diameter is 0.65 inches (16.5 mm) and the outer diameter is 1.01 inches. The 3Mcatalog number for this product is 40053. - 7100057123
Specifications
Color
Dark Blue
Component
Compression Lug
Material
Aluminum
Manufacturer
3M
Overall Length (Imperial)
4 In
Overall Length (Metric)
101.6 mm
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
300 Kcmil
Features
Standard barrel ensures a secure fit and offers reliable performance
Barrel sealing caps are color coded to help to indicate the wire guage
Suitable for indoor and outdoor applications
Made of aluminum for good conductivity and tin plating for corrosion resistance
Rated for 35 kV applications
