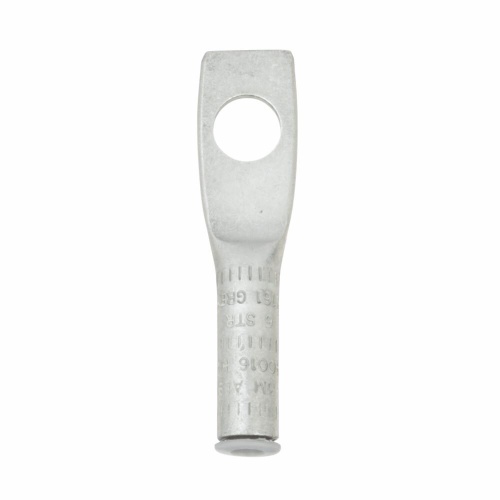

3M 7100025784 - Scotchlok™ Aluminum One Hole Lug 40025, up to 35 kV, 2 AWG, Pink
Normally In Stock
Code: 473545
Scotchlok™ Aluminum One Hole Lug 40025, up to 35 kV, 2 AWG, Pink - 7100025784
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$358.56
Sale Price
$298.80
SOLD BY THE CASE (1 Case = 25 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Compression Lugs (40025) are pink compression lugs made of aluminum. They have an overall length of 2.62 inches (66.5 mm) and a barrel length of 0.92 inches (23.4 mm). The lug has a one-hole configuration and is suitable for use with aluminum or copper conductors. It has an inside diameter of 0.307 inches (7.8 mm) and an outer diameter of 0.53 inches. The lug is compatible with 2 AWG conductors and has a maximum operating voltage of 35 kilovolts. It is sold in a case quantity of 25. - 7100025784
Specifications
Component
Compression Lug
Material
Aluminum
Manufacturer
3M
Sub Brand
Scotchlok™
Overall Length (Imperial)
2.62 In
Color
Pink
Maximum Conductor Size (Imperial)
2 AWG
Overall Length (Metric)
66.5 mm
Features
Standard barrel ensures a secure fit and offers reliable performance
Barrel sealing caps are color coded to help to indicate the wire guage
Suitable for indoor and outdoor applications
Made of aluminum for good conductivity and tin plating for corrosion resistance
Rated for 35 kV applications
