Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

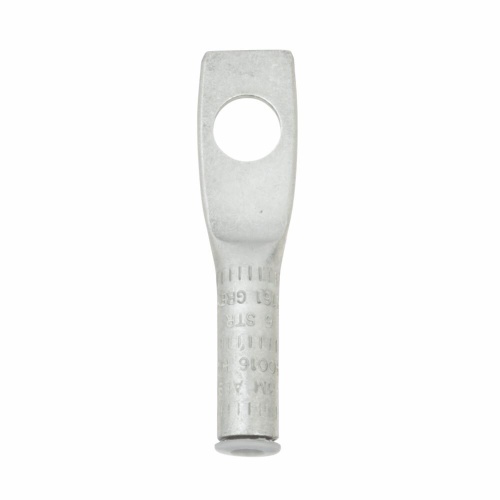

3M 7000132235 - Scotchlok™ Aluminum One Hole Lug 40020, up to 35 kV, 4 AWG, Green
Normally In Stock
Code: 473543
Scotchlok™ Aluminum One Hole Lug 40020, up to 35 kV, 4 AWG, Green - 7000132235
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$918.34
Sale Price
$765.28
SOLD BY THE CASE (1 Case = 50 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Compression Lugs (40020) are aluminum lugs designed for use with aluminum or copper conductors. They have a maximum conductor size of 4 AWG and a maximum operating voltage of 35 Kilovolt. The lugs have a one-hole lug description and a standard barrel style with an overall length of 2.3 inches (58.4 mm). They are green in color, and the barrel length is 0.94 inches (23.8 mm). The lugs have a pad width of 0.62 inches (15.7 mm) and a pad length of 0.96 inches (24.4 mm). They have an inside diameter of 0.265 inches (6.7 mm) and an outer diameter of 0.47 inches. The lugs have a connector description of one hole and a lug type of compression lugs. They have a center hole to center hole distance of 0.437 inches and a center hole to end of pad distance of 0.44 inches (11.2 mm). The lugs are compatible with 5/16 inch stud sizes and come in a case quantity of 50. - 7000132235
Specifications
Color
Green
Component
Compression Lug
Material
Aluminum
Manufacturer
3M
Sub Brand
Scotchlok™
Overall Length (Imperial)
2.3 In
Maximum Conductor Size (Imperial)
4 AWG
Overall Length (Metric)
58.4 mm
Features
Standard barrel ensures a secure fit and offers reliable performance
Barrel sealing caps are color coded to help to indicate the wire guage
Suitable for indoor and outdoor applications
Made of aluminum for good conductivity and tin plating for corrosion resistance
Rated for 35 kV applications
Downloads

Code: 473543
3M 7000132235 - Scotchlok™ Aluminum One Hole Lug 40020, up to 35 kV, 4 AWG, Green
$918.34
Sale Price
$765.28
