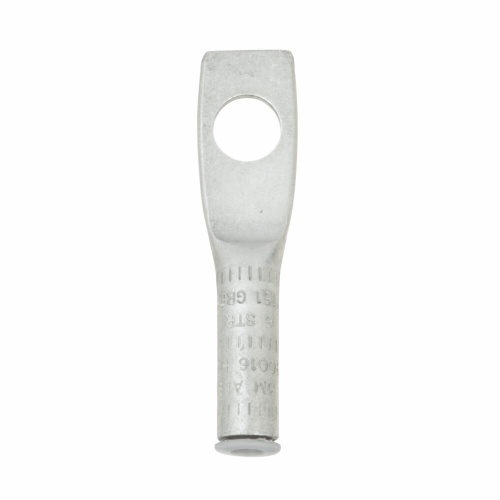

3M 7100024099 - Scotchlok™ Aluminum One Hole Lug 40016, up to 35 kV, 6 AWG, Gray
Normally In Stock
Code: 473542
Scotchlok™ Aluminum One Hole Lug 40016, up to 35 kV, 6 AWG, Gray - 7100024099
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$831.54
Sale Price
$692.95
SOLD BY THE CASE (1 Case = 50 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3MCompression Lugs (40016) from the Scotchlok™ brand are gray in color and made of aluminum. They have an overall length of 2.28 inches (57.9 mm) and a barrel length of 0.75 inches (19.1 mm). These compression lugs have a standard barrel style, one hole connector description, and are suitable for use with aluminum or copper conductors. They can accommodate a maximum conductor size of 6 AWG (16 mm²) and have a maximum operating voltage of 35 Kilovolts. The lug is compatible with 5/16 inch stud sizes and has an inner diameter of 0.2 inches (5.1 mm) and an outer diameter of 0.34 inches. Each case contains 50 compression lugs. The center of the hole to the end of the pad is 0.44 inch (11.2 mm) and the pad length is 0.88 inches (22.3 mm). - 7100024099
Specifications
Color
Gray
Component
Compression Lug
Material
Aluminum
Manufacturer
3M
Sub Brand
Scotchlok™
Overall Length (Imperial)
2.28 In
Maximum Conductor Size (Imperial)
6 AWG
Overall Length (Metric)
57.9 mm
Features
Standard barrel ensures a secure fit and offers reliable performance
Barrel sealing caps are color coded to help to indicate the wire guage
Suitable for indoor and outdoor applications
Made of aluminum for good conductivity and tin plating for corrosion resistance
Rated for 35 kV applications
