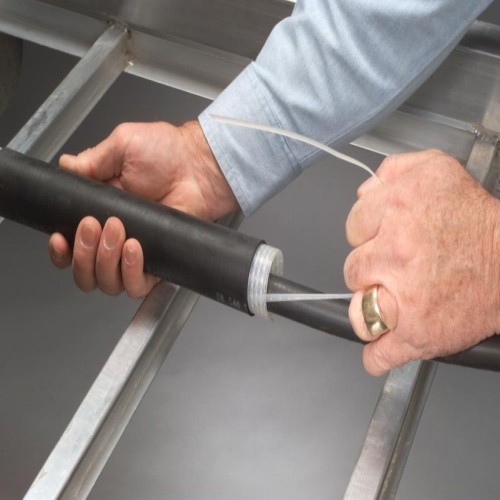

3M 7000140679 - 3M SJ-2A Splice Jacket Kit, JCN, 15-35 kV, Max. Splice O.D. 3.3 in,(83,8 mm)
Normally In Stock
Code: 473540
3M SJ-2A Splice Jacket Kit, JCN, 15-35 kV, Max. Splice O.D. 3.3 in,(83,8 mm) - 7000140679
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$1035.72
Sale Price
$863.10
SOLD BY THE CASE (1 Case = 6 Kit)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M Cold Shrink Splice, catalog number SJ-2A, is a black splice suitable for medium voltage cable connections. It has a maximum conductor size of 1 AWG (imperial) or 50 mm² (metric) and an elongation of 635%. The splice is rated for voltages of 15 kV, 25/28 kV, and 35 kV. It is an inline splice suitable for use with Concentric Neutral (CN) and Jacketed Concentric Neutral (JCN) cable types. The kit does not include a lug/stem connector. The insulation outer diameter ranges from 0.91 to 1.06 inches (imperial) or 23.0 to 26.8 mm (metric), and the maximum splice outside diameter is 3.3 inches. - 7000140679
Specifications
Color
Black
Manufacturer
3M
Component
Cold Shrink Splice
Maximum Conductor Size (Metric)
50 mm²
Splice Type
Inline
Maximum Conductor Size (Imperial)
1 AWG
Features
The versatile 1-piece design offers quick installation
Resists fungus, acids and alkalis
Suitable for direct burial, aerial and submersible applications
Cold shrink jacket made of EPDM rubber provides moisture resistance and durability
Includes Cold Shring sealing sleeve and Scotch 2228 rubber mastic tape
Water resistant - meets the water seal requirements of ANSI C119.1
