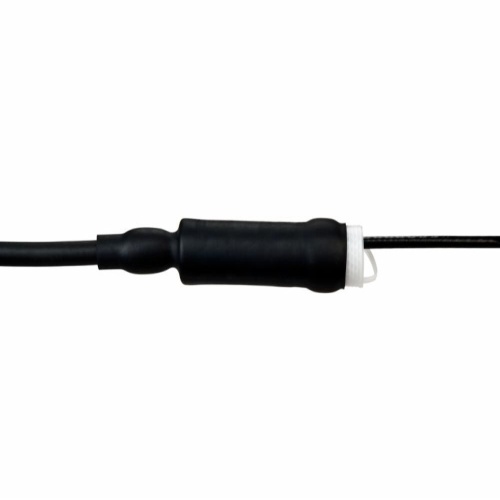

3M 7100165408 - 3M Cold Shrink Quick Splice Low Voltage QSLV-M-UF, Non-shielded, 1 kV
Normally In Stock
Code: 473529
3M Cold Shrink Quick Splice Low Voltage QSLV-M-UF, Non-shielded, 1 kV - 7100165408
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$916.46
Sale Price
$763.72
SOLD BY THE CASE (1 Case = 10 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3MQSLV-M-UF Cold Shrink Splices are designed for use in 1 kV applications. These splices are suitable for both aluminum and copper conductors. The black color adds durability and versatility to the product. Available in a wide range of insulation outer diameters, from 0.2 in to 0.75 in (5.08 mm to 19.05 mm), ensuring compatibility with various cable sizes. - 7100165408
Specifications
Color
Black
Manufacturer
3M
Component
Cold Shrink Splice
Features
Sleeve is made of EPDM rubber which contains no chlorides nor sulfur, sealing mastic provides a water-resistant sealing
The third, center segment of the core remains inside the cold shrink tube, acting as a support structure
Open-ended tubular sleeves with a sealing mastic on each end for range taking and water resistant tight seal
Factory-expanded for easy installation
For direct-bury, secondary low-voltage, non-shielded cable splices
Rated for up to 1 kV applications
Splices both aluminum and copper conductors
Simple installation which requires no tools
Offers excellent wet electrical properties and resists water, acids and alkalis
Withstands temperatures of -40°C to 90°C (-40 °F to 194°F)
RoHS 2011/65/EU Compliant and ANSI Certified
Environmental sealing for communication and other non-electrical applications
