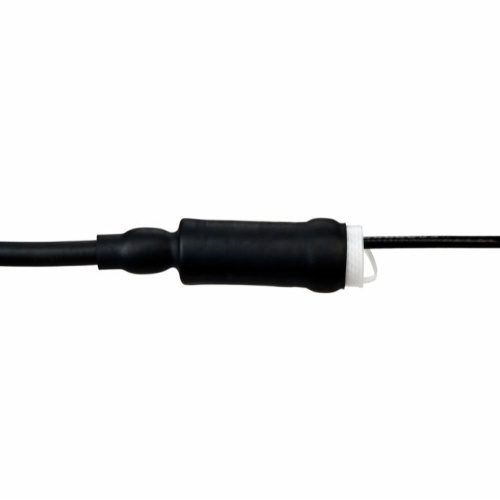

3M 7000058804 - 3M Cold Shrink Quick Splice Low Voltage QSLV-M 8-2/0, Non-shielded, 1 kV
Normally In Stock
Code: 473528
3M Cold Shrink Quick Splice Low Voltage QSLV-M 8-2/0, Non-shielded, 1 kV - 7000058804
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$657.92
Sale Price
$548.27
SOLD BY THE CASE (1 Case = 10 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3MQSLV-M(8-2/0) Cold Shrink Splices are inline connectors suitable for power cables. They have a voltage rating of 0.6/1 kV and can accommodate conductor sizes ranging from 8 AWG to 2/0 AWG (10 mm² to 70 mm²). The splices are designed to work both indoors and outdoors and have a maximum elongation of 750%. They are made of aluminum and copper and come in a sleek black color. The splices do not include a connector and have a maximum connector length of 2.50 in (63 mm). The insulation outer diameter ranges from 0.20 in to 0.75 in (5.08 mm to 19.05 mm). - 7000058804
Specifications
Color
Black
Manufacturer
3M
Component
Cold Shrink Splice
Splice Type
Inline
Maximum Conductor Size (Imperial)
2/0 AWG
Maximum Conductor Size (Metric)
70 mm²
Minimum Conductor Size (Imperial)
8 AWG
Minimum Conductor Size (Metric)
10 mm²
Features
Sleeve is made of EPDM rubber which contains no chlorides nor sulfur, sealing mastic provides a water-resistant sealing
The third, center segment of the core remains inside the cold shrink tube, acting as a support structure
Open-ended tubular sleeves with a sealing mastic on each end for range taking and water resistant tight seal
Factory-expanded for easy installation
For direct-bury, secondary low-voltage, non-shielded cable splices
Rated for up to 1 kV applications
Splices both aluminum and copper conductors
Simple installation which requires no tools
Offers excellent wet electrical properties and resists water, acids and alkalis
Withstands temperatures of -40°C to 90°C (-40 °F to 194°F)
RoHS 2011/65/EU Compliant and ANSI Certified
Environmental sealing for communication and other non-electrical applications
