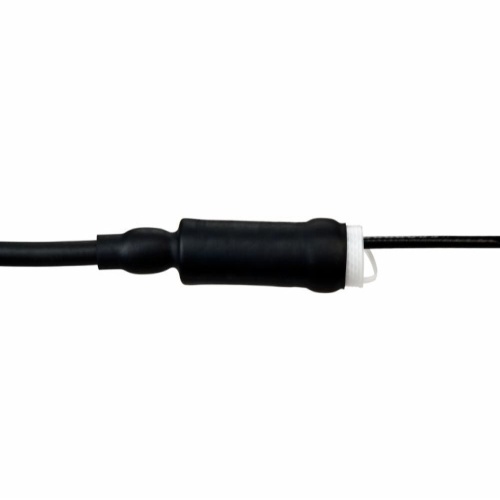

3M 7000058805 - 3M Cold Shrink Quick Splice Low Voltage QSLV-M 2-500, Non-shielded, 1 kV
Normally In Stock
Code: 473526
3M Cold Shrink Quick Splice Low Voltage QSLV-M 2-500, Non-shielded, 1 kV - 7000058805
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$741.97
Sale Price
$618.31
SOLD BY THE CASE (1 Case = 10 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M Cold Shrink Splices, catalog number QSLV-M(2-500), are black cold shrink splices designed for power cables. They have a voltage rating of 1 kV and are suitable for inline splice applications. The splices accommodate conductor sizes ranging from 2 AWG to 1000 kcmil for both aluminum and copper conductors. The overall length of the splices is 108 mm, and the maximum connector length is 4.25 in. The insulation outer diameter range is 0.40-1.60 in. and 10-41 mm. The maximum connector diameter is 1.500 in. or 38 mm. - 7000058805
Specifications
Color
Black
Manufacturer
3M
Component
Cold Shrink Splice
Splice Type
Inline
Maximum Conductor Size (Imperial)
1000 Kcmil (Copper)
Maximum Conductor Size (Imperial)
500 Kcmil (Aluminum)
Maximum Conductor Size (Metric)
240 mm² (Aluminum)
Maximum Conductor Size (Metric)
500 mm² (Copper)
Minimum Conductor Size (Imperial)
2 AWG (Aluminum)
Minimum Conductor Size (Imperial)
2 AWG (Copper)
Minimum Conductor Size (Metric)
35 mm² (Aluminum)
Minimum Conductor Size (Metric)
35 mm² (Copper)
Overall Length (Metric)
108 mm
Features
Sleeve is made of EPDM rubber which contains no chlorides nor sulfur, sealing mastic provides a water-resistant sealing
The third, center segment of the core remains inside the cold shrink tube, acting as a support structure
Open-ended tubular sleeves with a sealing mastic on each end for range taking and water resistant tight seal
Factory-expanded for easy installation
For direct-bury, secondary low-voltage, non-shielded cable splices
Rated for up to 1 kV applications
Splices both aluminum and copper conductors
Simple installation which requires no tools
Offers excellent wet electrical properties and resists water, acids and alkalis
Withstands temperatures of -40°C to 90°C (-40 °F to 194°F)
RoHS 2011/65/EU Compliant and ANSI Certified
Environmental sealing for communication and other non-electrical applications
