3M 7100313613 - 3M Electrically Conductive Double-Sided Tape 9772-30, 100 mm x 10 m
Normally In Stock
Code: 473395
3M Electrically Conductive Double-Sided Tape 9772-30, 100 mm x 10 m - 7100313613
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$618.12
Sale Price
$515.10
SOLD BY THE CASE (1 Case = 8 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

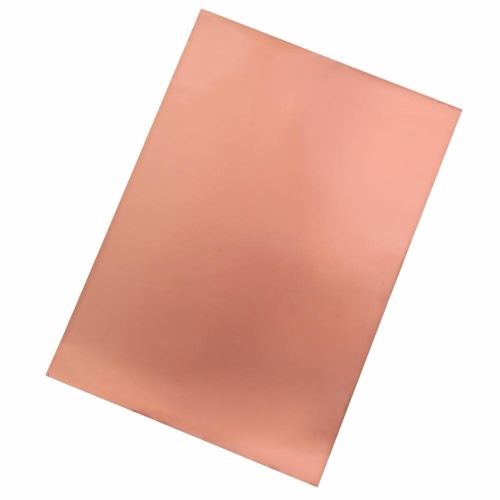

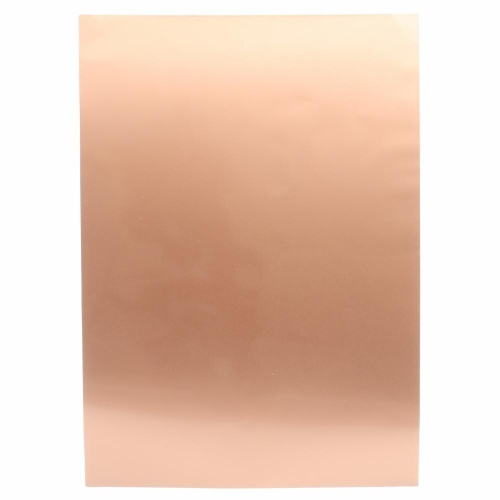

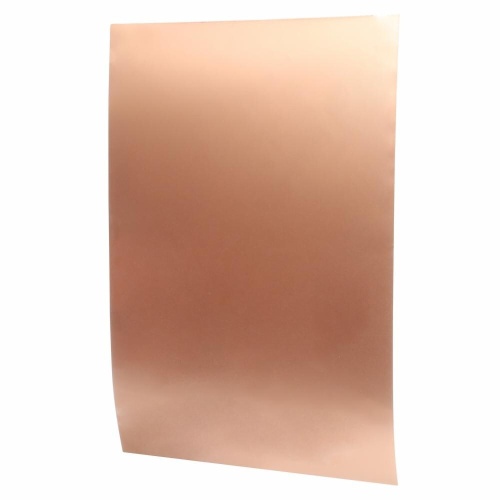

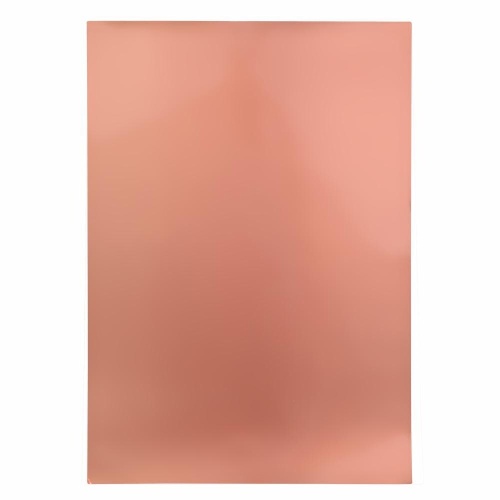

3M 7100313613 - Conductive Adhesive Transfer Tapes (9772-30) are gold-colored, acrylic-based tapes designed for multiple applications such as chassis, EMI gaskets, flexible printed circuits, and more. With a total tape thickness of 0.03 mm (1.2 mil) and copper foil backing material, it offers excellent conductivity. The tapes have a maximum operating temperature of 121 ℃ (250 ℉) and a minimum operating temperature of -40 ℃ (-40 ℉). They come with a PET liner, ensuring easy application and a shelf life of 12 months. The adhesive strength is 1100 gf/in, and the electrical resistance is XY-axis 0.015 Ω.
Specifications
Manufacturer
3M
Adhesive Type
Acrylic
Component
Electrical Tape
Maximum Operating Temperature (Fahrenheit)
250 °F
Maximum Operating Temperature (Celsius)
121 °C
Length (Metric)
10 M
Width (Metric)
100 mm
Sub Component
Conductive Adhesive Transfer Tape
Length (Imperial)
10.936 Yd
Width (Imperial)
3.937 In
Color
Gold
Features
Isotropic XYZ-axis conductivity through the adhesive
Excellent XY-axis electrical resistance
Thin profile
Conformable and bonds quickly
Good EMI shielding in the bond line gap
Improved electrical contact to small-size areas
Good handling and workability
Good passive intermodulation (PIM) performance
