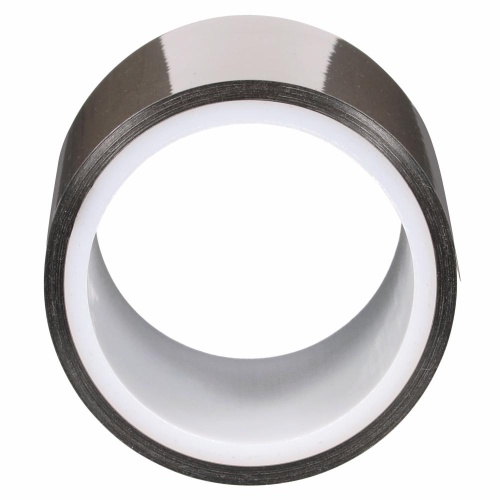

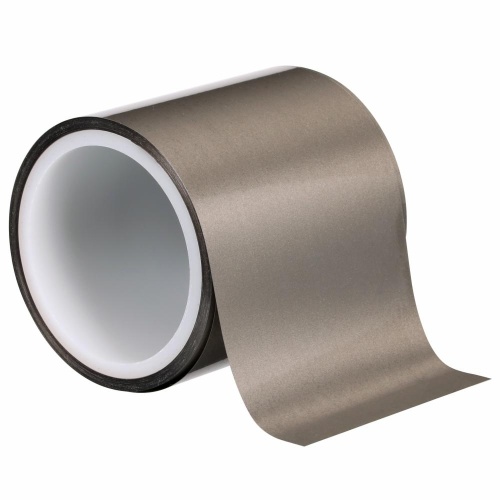

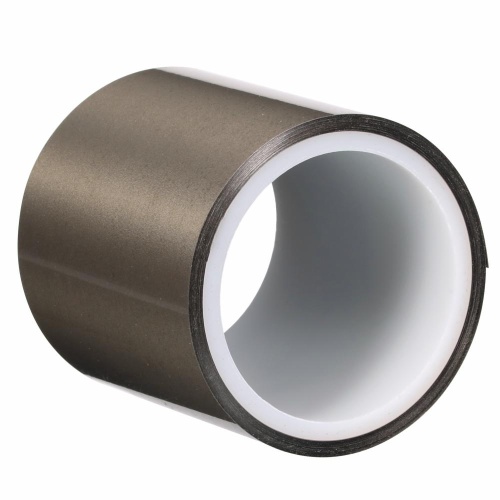

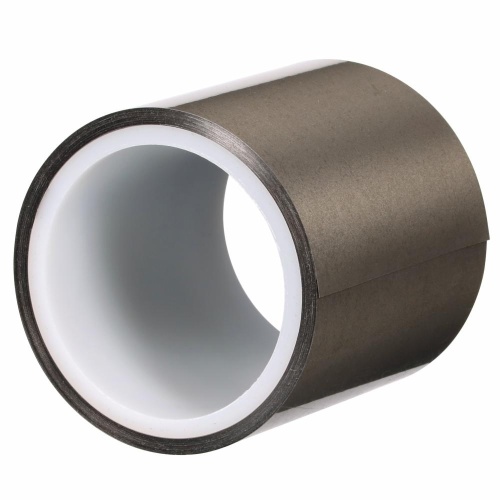

3M 7100313610 - 3M Electrically Conductive Single-Sided Tape 5113SFT-50, Grey, 25 mm x 30 m
Normally In Stock
Code: 473392
3M Electrically Conductive Single-Sided Tape 5113SFT-50, Grey, 25 mm x 30 m - 7100313610
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$459.73
Sale Price
$383.11
SOLD BY THE CASE (1 Case = 8 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M 7100313610 - Conductive Adhesive Transfer Tape (Product Number 5113SFT-50) is a gray adhesive tape with a polyolefin adhesive type. It is designed for use in camera modules, display chip on flex, display wraps, EMI shields, and sensors. The tape has a total thickness of 0.05 mm (2 mil) without liner and features a woven fabric backing. It can withstand temperatures ranging from -40 ℃ to 121 ℃ (-40 ℉ to 250 ℉) and has a shelf life of 48 months. The tape has a maximum adhesion strength of 1500 gf/in and its electrical resistance is XY-axis 0.01 Ω, Z-axis 0.03 Ω. The liner material is PET.
Specifications
Color
Gray
Manufacturer
3M
Component
Electrical Tape
Maximum Operating Temperature (Fahrenheit)
250 °F
Maximum Operating Temperature (Celsius)
121 °C
Width (Metric)
25 mm
Sub Component
Conductive Adhesive Transfer Tape
Width (Imperial)
0.984 In
Length (Imperial)
32.808 Yd
Length (Metric)
30 M
Adhesive Type
Polyolefin
Features
Isotropic XYZ-axis conductivity through the adhesive
Excellent grounding with small contact areas for microelectronics
High adhesion for reliable electrical contact to many substrates including select low-surface-energy substrates
Excellent EMI shielding in bond line gap
Four-year shelf life for reliable, consistent performance over time
Long-term performance at high temperatures (105 ˚C) for demanding applications
Conformable for precise placement in tight spaces to create EMI-sealed bond lines
Halogen free* and RoHS compliant**
