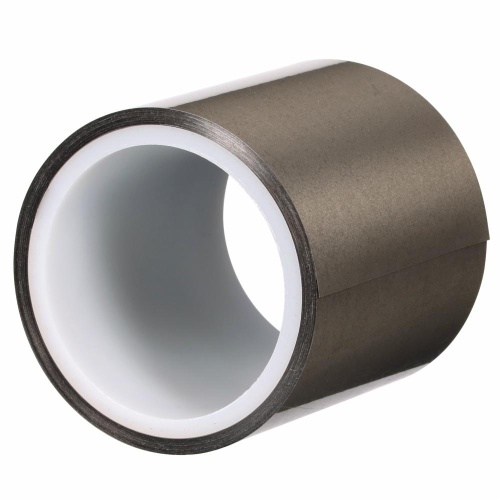

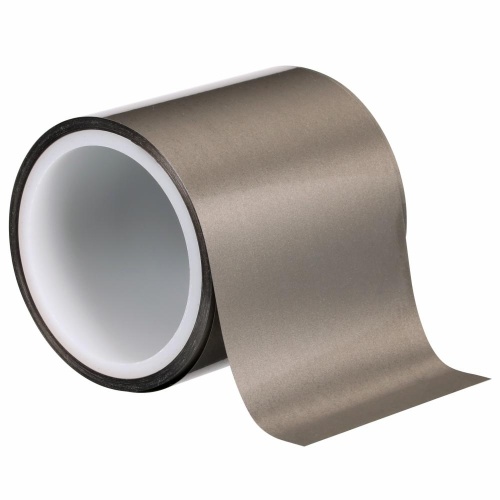

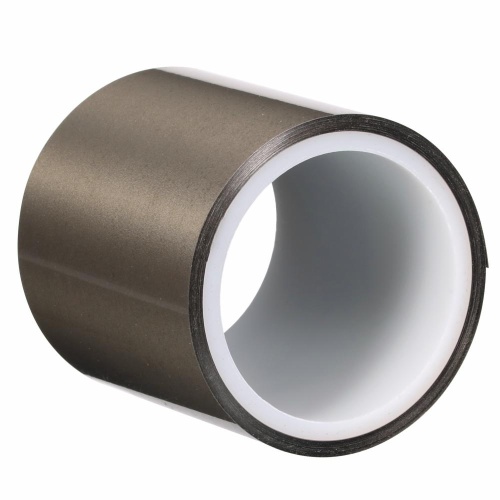

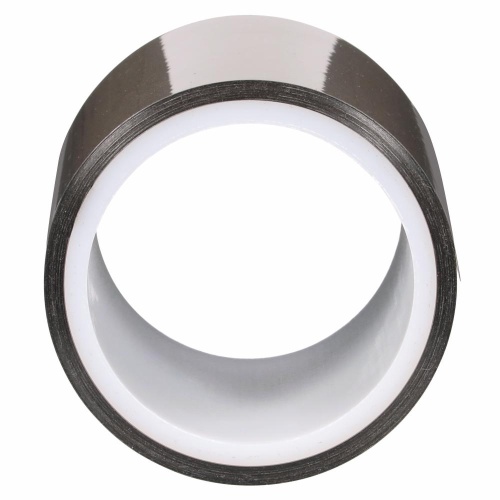

3M 7100313609 - 3M Electrically Conductive Single-Sided Tape 5113SFT-50, Grey, 25 mm x 10 m
Normally In Stock
Code: 473391
3M Electrically Conductive Single-Sided Tape 5113SFT-50, Grey, 25 mm x 10 m - 7100313609
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$269.53
Sale Price
$224.61
SOLD BY THE CASE (1 Case = 12 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M 7100313609 - Conductive Adhesive Transfer Tape 5113SFT-50 is a gray tape with polyolefin adhesive. It is suitable for camera modules, display chip on flex, display wraps, EMI shields, and sensors. The tape has a total thickness of 0.05mm (2 mil) without liner and a woven fabric backing. It can withstand temperatures from -40℃ up to 121℃ and has a shelf life of 48 months. The adhesive strength is 1500 gf/in and the electrical resistance is XY-axis 0.01Ω and Z-axis 0.03Ω. The tape is available in an overall width of 0.984 inches (25mm) and an overall length of 10.936 yards (10m). The liner material is PET.
Specifications
Color
Gray
Manufacturer
3M
Component
Electrical Tape
Maximum Operating Temperature (Fahrenheit)
250 °F
Maximum Operating Temperature (Celsius)
121 °C
Length (Metric)
10 M
Width (Metric)
25 mm
Sub Component
Conductive Adhesive Transfer Tape
Width (Imperial)
0.984 In
Length (Imperial)
10.936 Yd
Adhesive Type
Polyolefin
Features
Isotropic XYZ-axis conductivity through the adhesive
Excellent grounding with small contact areas for microelectronics
High adhesion for reliable electrical contact to many substrates including select low-surface-energy substrates
Excellent EMI shielding in bond line gap
Four-year shelf life for reliable, consistent performance over time
Long-term performance at high temperatures (105 ˚C) for demanding applications
Conformable for precise placement in tight spaces to create EMI-sealed bond lines
Halogen free* and RoHS compliant**
