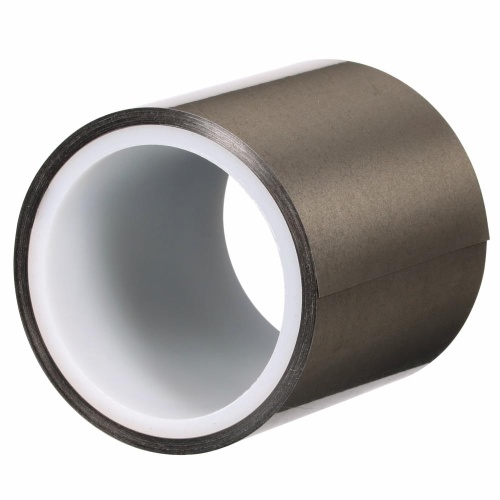

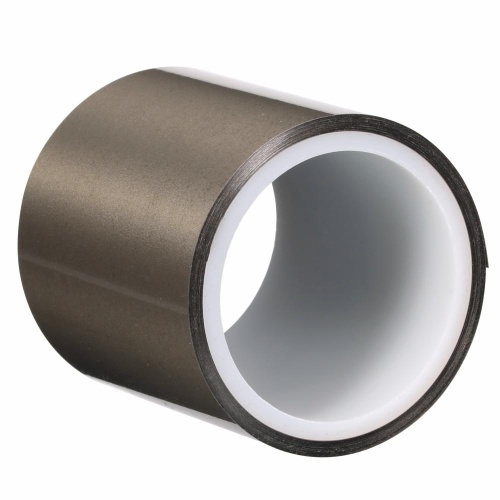

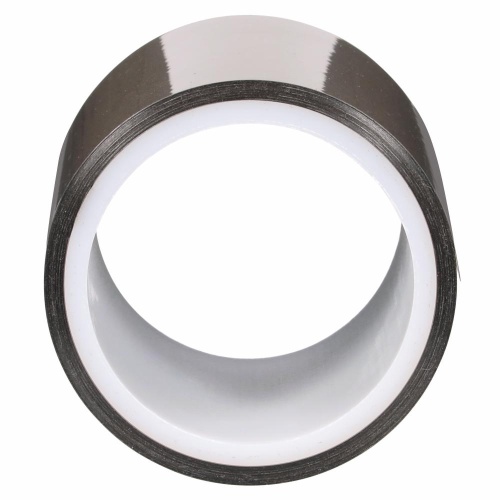

3M 7100313607 - 3M Electrically Conductive Single-Sided Tape 5113SFT-50, Grey, 210 mm x 10 m
Normally In Stock
Code: 473389
3M Electrically Conductive Single-Sided Tape 5113SFT-50, Grey, 210 mm x 10 m - 7100313607
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$549.54
Sale Price
$457.95
SOLD BY THE CASE (1 Case = 4 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M 7100313607 - Conductive Adhesive Transfer Tapes, 5113SFT-50, are gray polyolefin tapes ideal for camera modules, display chip on flex, display wraps, EMI shields, and sensors. With a total tape thickness of 0.05 mm (2 mil) and woven fabric backing, they offer a strong adhesive strength of 1500 gf/in. Operating temperature ranges from -40 to 121°C (-40 to 250°F). These tapes have a shelf life of 48 months and provide electrical resistance of XY-axis 0.01 Ω and Z-axis 0.03 Ω. Liner material is PET.
Specifications
Color
Gray
Manufacturer
3M
Component
Electrical Tape
Maximum Operating Temperature (Fahrenheit)
250 °F
Maximum Operating Temperature (Celsius)
121 °C
Length (Metric)
10 M
Sub Component
Conductive Adhesive Transfer Tape
Length (Imperial)
10.936 Yd
Adhesive Type
Polyolefin
Width (Imperial)
8.268 In
Width (Metric)
210 mm
Features
Isotropic XYZ-axis conductivity through the adhesive
Excellent grounding with small contact areas for microelectronics
High adhesion for reliable electrical contact to many substrates including select low-surface-energy substrates
Excellent EMI shielding in bond line gap
Four-year shelf life for reliable, consistent performance over time
Long-term performance at high temperatures (105 ˚C) for demanding applications
Conformable for precise placement in tight spaces to create EMI-sealed bond lines
Halogen free* and RoHS compliant**
