Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 473385

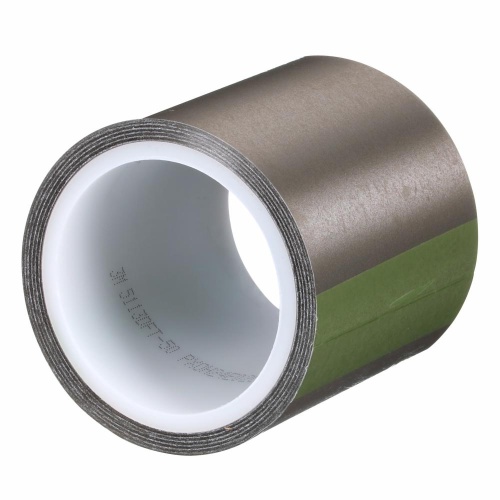

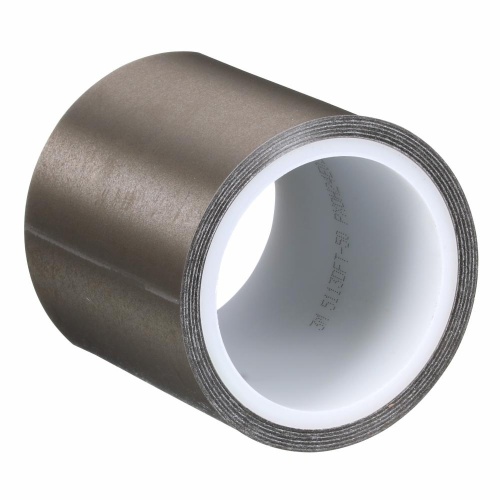

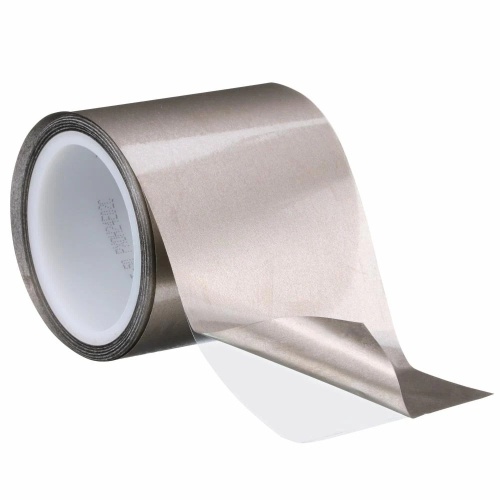

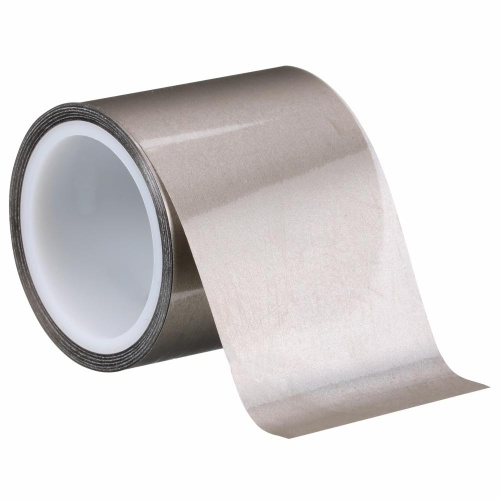

3M 7100313602 - 3M Electrically Conductive Double-Sided Tape 5113DFT-50, 500 mm x 30 m
Normally In Stock
3M Electrically Conductive Double-Sided Tape 5113DFT-50, 500 mm x 30 m - 7100313602
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$2068.55
Sale Price
$1723.79
SOLD BY THE CASE (1 Case = 1 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M 7100313602 - Conductive Adhesive Transfer Tapes, 5113DFT-50, are used for bonding in applications such as bond line gaps, chassis, EMI gaskets, EMI shields, flexible printed circuits, printed circuit boards, and sensors. The tape has an overall width of 19.685 in (500 mm), an overall length of 32.808 yd (30 m), and a total tape thickness without liner of 0.05 mm (2 mil). It is gray in color and the adhesive type is polyolefin. The backing material is woven fabric and the liner material is PET. The tape has a maximum operating temperature of 121 ℃ (250 ℉) and a minimum operating temperature of -40 ℃ (-40 ℉). The electrical resistance of the tape is XY-axis 0.01 Ω and Z-axis 0.03 Ω. The tape has a shelf life of 48 months. The adhesion strength is 1500 gf/in.
Specifications
Color
Gray
Manufacturer
3M
Component
Electrical Tape
Maximum Operating Temperature (Fahrenheit)
250 °F
Maximum Operating Temperature (Celsius)
121 °C
Width (Metric)
500 mm
Sub Component
Conductive Adhesive Transfer Tape
Width (Imperial)
19.685 In
Length (Imperial)
32.808 Yd
Length (Metric)
30 M
Adhesive Type
Polyolefin
Features
Isotropic XYZ-axis conductivity through the adhesive
Excellent grounding with small contact areas for microelectronics
Excellent EMI shielding performance for a wide range of frequencies
Excellent EMI shielding in bond line gap
Four-year shelf life for reliable, consistent performance over time
Long-term performance at high temperatures (105 ˚C) for demanding applications
Adhesion to select low-surface-energy substrates
Conformable for precise placement in tight spaces to create EMI-sealed bond lines
Halogen free* and RoHS compliant**
