Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 473384

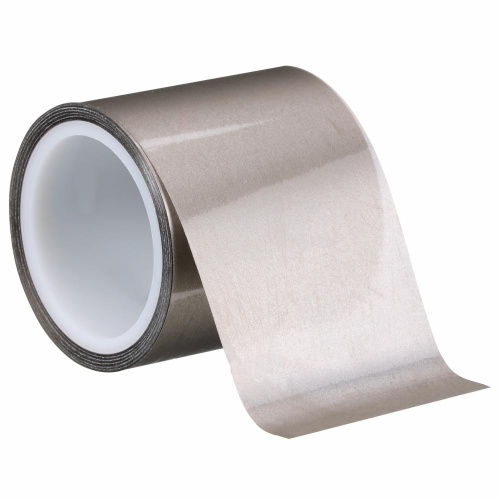

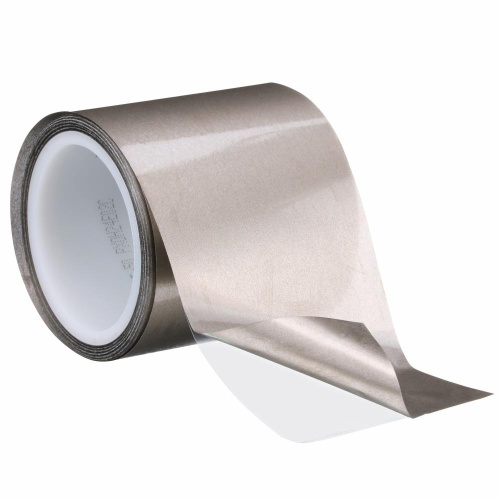

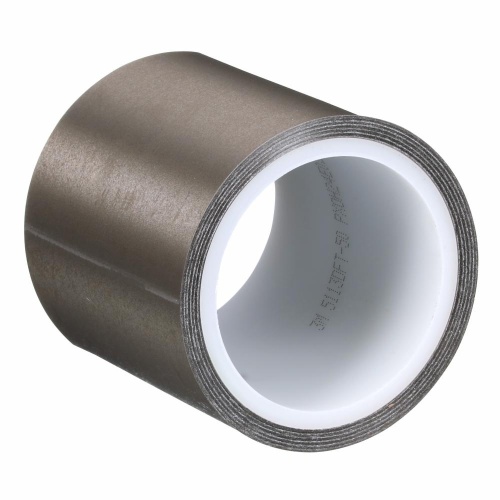

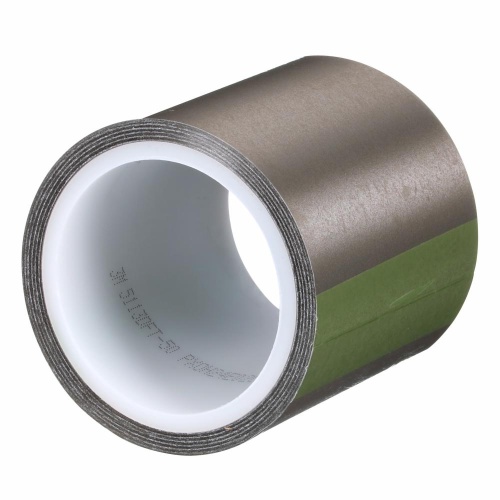

3M 7100313601 - 3M Electrically Conductive Double-Sided Tape 5113DFT-50, Grey, 25 mm x 30 m
Normally In Stock
3M Electrically Conductive Double-Sided Tape 5113DFT-50, Grey, 25 mm x 30 m - 7100313601
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$698.62
Sale Price
$582.18
SOLD BY THE CASE (1 Case = 8 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M 7100313601 - Conductive Adhesive Transfer Tapes (Product Catalog Number: 5113DFT-50) are gray adhesive tapes with an overall width of 0.984 in (25 mm) and an overall length of 32.808 yd (30 m). They are suitable for bonding line gaps, chassis, EMI gaskets, EMI shields, flexible printed circuits, printed circuit boards, and sensors. The tape thickness without the liner is 0.05 mm (2 mil) and the backing material is woven fabric. It has a maximum operating temperature of 121 ℃ (250 ℉) and a minimum operating temperature of -40 ℃ (-40 ℉). The product has a shelf life of 48 months and exhibits an adhesion strength of 1500 gf/in. The liner material is PET and the electrical resistance is XY-axis 0.01 Ω and Z-axis 0.03 Ω.
Specifications
Color
Gray
Manufacturer
3M
Component
Electrical Tape
Maximum Operating Temperature (Fahrenheit)
250 °F
Maximum Operating Temperature (Celsius)
121 °C
Width (Metric)
25 mm
Sub Component
Conductive Adhesive Transfer Tape
Width (Imperial)
0.984 In
Length (Imperial)
32.808 Yd
Length (Metric)
30 M
Adhesive Type
Polyolefin
Features
Isotropic XYZ-axis conductivity through the adhesive
Excellent grounding with small contact areas for microelectronics
Excellent EMI shielding performance for a wide range of frequencies
Excellent EMI shielding in bond line gap
Four-year shelf life for reliable, consistent performance over time
Long-term performance at high temperatures (105 ˚C) for demanding applications
Adhesion to select low-surface-energy substrates
Conformable for precise placement in tight spaces to create EMI-sealed bond lines
Halogen free* and RoHS compliant**
Downloads
Code: 473384
3M 7100313601 - 3M Electrically Conductive Double-Sided Tape 5113DFT-50, Grey, 25 mm x 30 m
$698.62
Sale Price
$582.18
SOLD BY THE CASE (1 Case = 8 Roll)
