Code: 473383

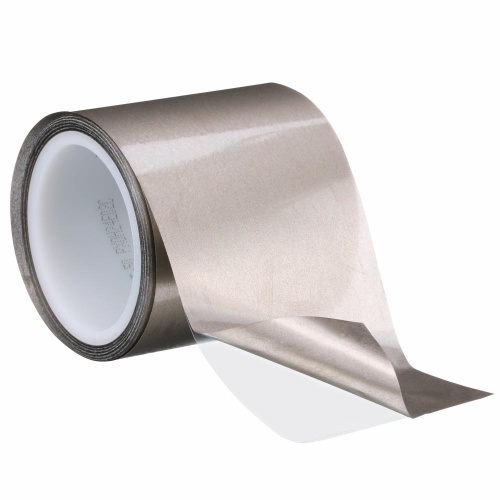

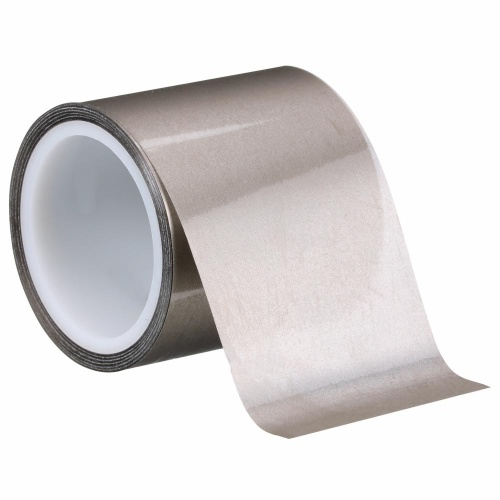

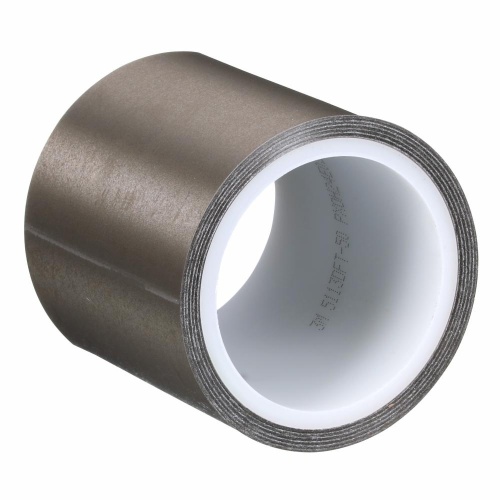

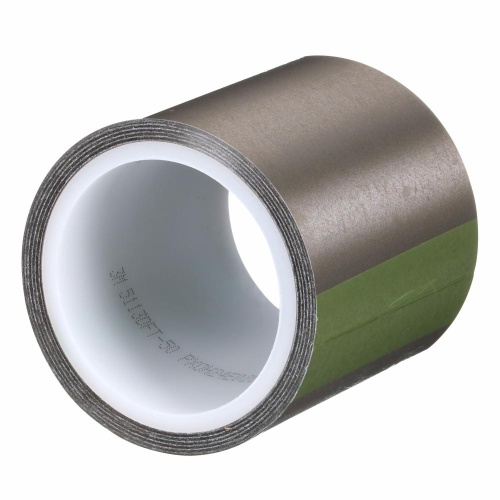

3M 7100313600 - 3M Electrically Conductive Double-Sided Tape 5113DFT-50, Grey, 25 mm x 10 m
Normally In Stock
3M Electrically Conductive Double-Sided Tape 5113DFT-50, Grey, 25 mm x 10 m - 7100313600
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$448.86
Sale Price
$374.05
SOLD BY THE CASE (1 Case = 12 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M 7100313600 - Conductive Adhesive Transfer Tapes (CAT) are designed for bonding line gaps, chassis, EMI gaskets, EMI shields, flexible printed circuits, printed circuit boards, and sensors. The tape has an overall width of 0.984 in (25 mm) and an overall length of 10.936 yd (10 m). It is gray in color and has a polyolefin adhesive type. The total tape thickness without the liner is 0.05 mm (2 mil). The backing material is woven fabric and the liner material is PET. The tape has a maximum operating temperature of 121 ℃ (250 ℉) and a minimum operating temperature of -40 ℃ (-40 ℉). It has a shelf life of 48 months. The adhesive strength is 1500 gf/in and the electrical resistance is XY-axis 0.01 Ω, Z-axis 0.03 Ω.
Specifications
Color
Gray
Manufacturer
3M
Component
Electrical Tape
Maximum Operating Temperature (Fahrenheit)
250 °F
Maximum Operating Temperature (Celsius)
121 °C
Length (Metric)
10 M
Width (Metric)
25 mm
Sub Component
Conductive Adhesive Transfer Tape
Width (Imperial)
0.984 In
Length (Imperial)
10.936 Yd
Adhesive Type
Polyolefin
Features
Isotropic XYZ-axis conductivity through the adhesive
Excellent grounding with small contact areas for microelectronics
Excellent EMI shielding performance for a wide range of frequencies
Excellent EMI shielding in bond line gap
Four-year shelf life for reliable, consistent performance over time
Long-term performance at high temperatures (105 ˚C) for demanding applications
Adhesion to select low-surface-energy substrates
Conformable for precise placement in tight spaces to create EMI-sealed bond lines
Halogen free* and RoHS compliant**
