Code: 473376

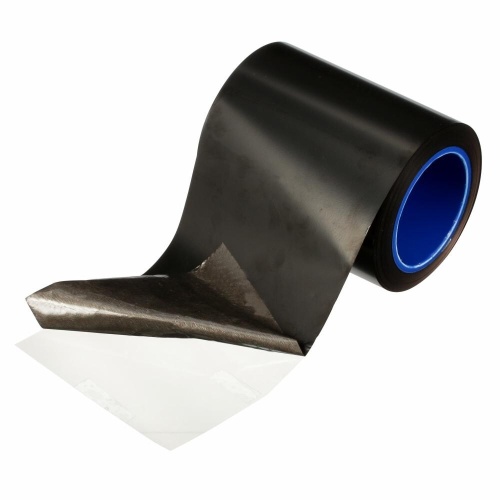

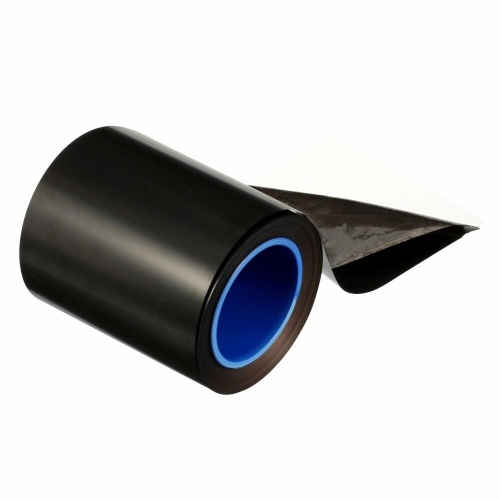

3M 7100313593 - 3M Electrically Conductive Single-sided Tape 3304BC-S, Black, 25 mm x 10 m
Normally In Stock
3M Electrically Conductive Single-sided Tape 3304BC-S, Black, 25 mm x 10 m - 7100313593
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$348.49
Sale Price
$290.41
SOLD BY THE CASE (1 Case = 12 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M 7100313593 - Conductive Adhesive Transfer Tapes are versatile for various applications, including camera modules, EMI shields, and printed circuit boards. The product has a black color, acrylic adhesive, and copper foil backing. It offers strong adhesion with 1300 gf/in adhesion strength. The tape has a total thickness of 0.045 mm (1.8 mil) without liner, with electrical resistance of XY-axis 0.05 Ω. It can withstand temperatures from -40 ℃ to 121 ℃ (-40 ℉ to 250 ℉). The shelf life is 12 months.
Specifications
Color
Black
Manufacturer
3M
Adhesive Type
Acrylic
Component
Electrical Tape
Maximum Operating Temperature (Fahrenheit)
250 °F
Maximum Operating Temperature (Celsius)
121 °C
Length (Metric)
10 M
Width (Metric)
25 mm
Sub Component
Conductive Adhesive Transfer Tape
Width (Imperial)
0.984 In
Length (Imperial)
10.936 Yd
Features
Isotropic XYZ-axis conductivity through the adhesive
Scratch-resistant black copper foil
High shielding effectiveness
Excellent conformability and edge conformance
Excellent EMI/ESD performance and electrical performance over time
Electrical contact on small areas
Good handling and reworkability
Overlap resistance
