Code: 473374
3M 7100313412 - 3M Electrically Conductive Single-sided Tape 3304BC-S, 100 mm x 10 m
Normally In Stock
3M Electrically Conductive Single-sided Tape 3304BC-S, 100 mm x 10 m - 7100313412
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$103.85
Sale Price
$86.54
SOLD BY THE CASE (1 Case = 8 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

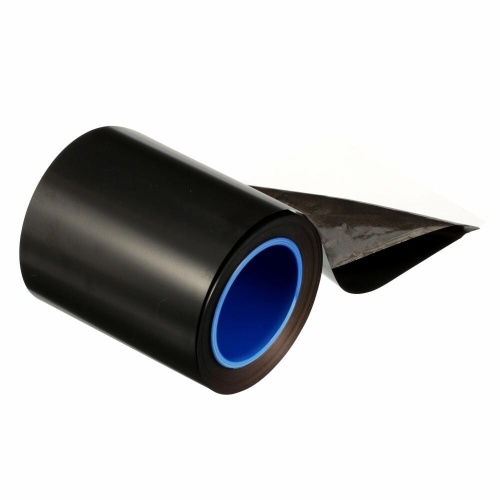

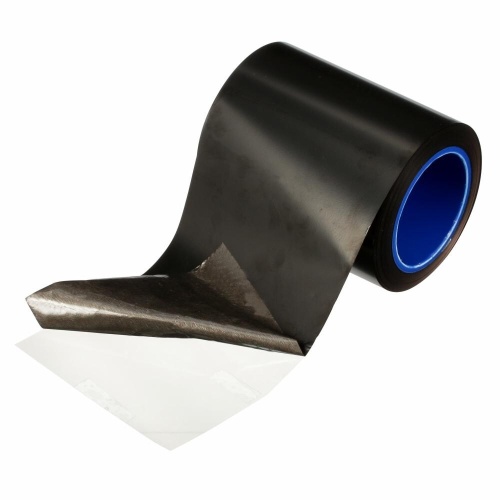

3M 7100313412 - Conductive Adhesive Transfer Tapes are black acrylic adhesive tapes designed for various applications such as camera modules, display chip on flex, EMI shields, and more. The tapes have an overall width of 3.937 in (100 mm) and an overall length of 10.936 yd (10 m). The copper foil backing material provides good electrical conductivity. The tapes have a total thickness of 0.045 mm (1.8 mil) without the liner and can withstand temperatures ranging from -40 ℃ to 121 ℃ (-40 ℉ to 250 ℉). They offer a strong adhesion strength of 1300 gf/in and have a shelf life of 12 months. The liner is made of PET material, and the electrical resistance is 0.05 Ω in the XY-axis.
Specifications
Color
Black
Manufacturer
3M
Adhesive Type
Acrylic
Component
Electrical Tape
Maximum Operating Temperature (Fahrenheit)
250 °F
Maximum Operating Temperature (Celsius)
121 °C
Length (Metric)
10 M
Width (Metric)
100 mm
Sub Component
Conductive Adhesive Transfer Tape
Length (Imperial)
10.936 Yd
Width (Imperial)
3.937 In
Features
Isotropic XYZ-axis conductivity through the adhesive
Scratch-resistant black copper foil
High shielding effectiveness
Excellent conformability and edge conformance
Excellent EMI/ESD performance and electrical performance over time
Electrical contact on small areas
Good handling and reworkability
Overlap resistance
