Code: 473370

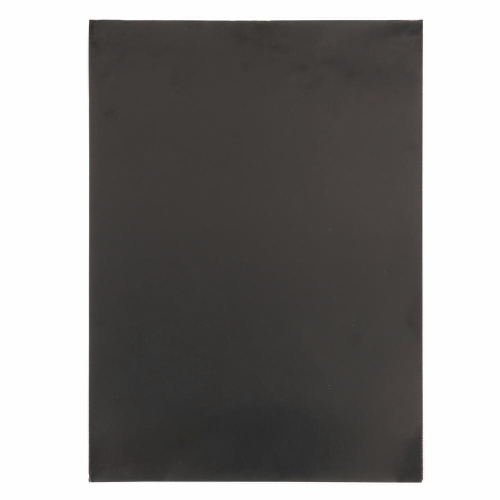

3M 7100313408 - 3M Electrically Conductive Single-Sided Tape 1020BC-25, Black, 500 mm x 30 m
Normally In Stock
3M Electrically Conductive Single-Sided Tape 1020BC-25, Black, 500 mm x 30 m - 7100313408
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$985.64
Sale Price
$821.37
SOLD BY THE CASE (1 Case = 1 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M 7100313408 - Conductive Adhesive Transfer Tapes (Catalog Number: 1020BC-25) are black acrylic adhesive tapes with a copper foil backing material. They are designed for various applications such as camera modules, display chip on flex, display wraps, EMI shields, printed circuit boards, and sensors. The tape has a total thickness without liner of 0.025 mm (0.984 mil) and an overall width of 19.685 in (500 mm). The overall length is 32.808 yd (30 m). It has a maximum operating temperature of 121℃ (250℉) and a minimum operating temperature of -40℃ (-40℉). The tape has a shelf life of 12 months and provides an adhesion strength of 1300 gf/in. The liner material is PET. The electrical resistance of the tape is XY-axis 0.015 Ω and Z-axis 0.1 Ω.
Specifications
Color
Black
Manufacturer
3M
Adhesive Type
Acrylic
Component
Electrical Tape
Maximum Operating Temperature (Fahrenheit)
250 °F
Maximum Operating Temperature (Celsius)
121 °C
Width (Metric)
500 mm
Sub Component
Conductive Adhesive Transfer Tape
Width (Imperial)
19.685 In
Length (Imperial)
32.808 Yd
Length (Metric)
30 M
Features
XYZ-axis conductivity
Stiffer copper for improved workability
Sleek black conductive coating
Low electrical resistance
Excellent EMI shielding performance
Excellent conformability and quick bonding
Good handling
Halogen free* and RoHS compliant**
Similar to 3M™ Electrically Conductive Single-Sided Tape 1050TC Series, but with a black conductive coating
