Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 473368

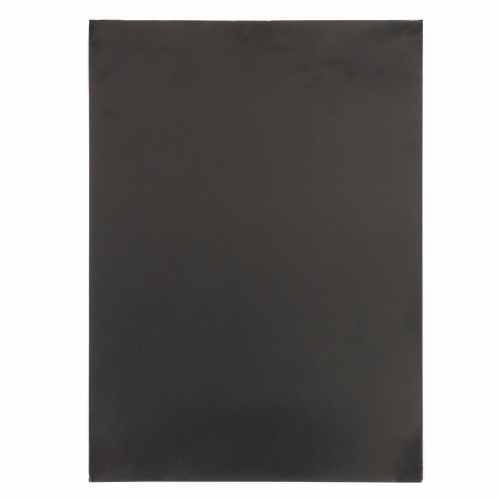

3M 7100313406 - 3M Electrically Conductive Single-Sided Tape 1020BC-25, Black, 100 mm x 10 m
Normally In Stock
3M Electrically Conductive Single-Sided Tape 1020BC-25, Black, 100 mm x 10 m - 7100313406
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$616.67
Sale Price
$513.89
SOLD BY THE CASE (1 Case = 8 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M 7100313406 - Conductive Adhesive Transfer Tapes (Product Number: 1020BC-25) are black acrylic adhesive tapes with a copper foil backing. They have an overall width of 3.937 in (100 mm) and an overall length of 10.936 yd (10 m). The tapes are suitable for various applications such as camera modules, display chip on flex, display wraps, EMI shields, printed circuit boards, and sensors. With a total tape thickness of 0.025 mm (0.984 mil) without liner, they provide excellent adhesion strength of 1300 gf/in and have a shelf life of 12 months. The tapes have a maximum operating temperature of 121 ℃ (250 ℉) and a minimum operating temperature of -40 ℃ (-40 ℉). The liner material is PET and the electrical resistance is XY-axis 0.015 Ω, Z-axis 0.1 Ω.
Specifications
Color
Black
Manufacturer
3M
Adhesive Type
Acrylic
Component
Electrical Tape
Maximum Operating Temperature (Fahrenheit)
250 °F
Maximum Operating Temperature (Celsius)
121 °C
Length (Metric)
10 M
Width (Metric)
100 mm
Sub Component
Conductive Adhesive Transfer Tape
Length (Imperial)
10.936 Yd
Width (Imperial)
3.937 In
Features
XYZ-axis conductivity
Stiffer copper for improved workability
Sleek black conductive coating
Low electrical resistance
Excellent EMI shielding performance
Excellent conformability and quick bonding
Good handling
Halogen free* and RoHS compliant**
Similar to 3M™ Electrically Conductive Single-Sided Tape 1050TC Series, but with a black conductive coating
