Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 473366

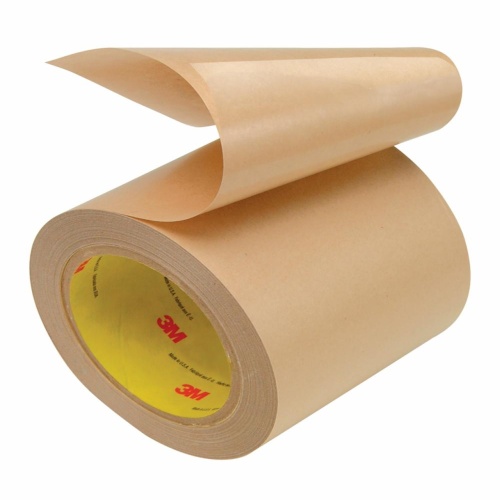

3M 7100308953 - 3M Electrically Conductive Adhesive Transfer Tape 9703, 1 in x 10 yds
Normally In Stock
3M Electrically Conductive Adhesive Transfer Tape 9703, 1 in x 10 yds - 7100308953
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$747.67
Sale Price
$623.06
SOLD BY THE CASE (1 Case = 12 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M 7100308953 - Conductive Adhesive Transfer Tapes are 1 inch (25.4 mm) wide and have a length of 10 yards (9.144 meters). They are silver in color and have an acrylic adhesive type. They are suitable for use in camera modules, chassis, flexible printed circuits, printed circuit boards, and sensors. The tape has a total thickness of 0.05 mm (2 mil) without the liner. It has a maximum operating temperature of 85 ℃ (185 ℉) and a minimum operating temperature of -40 ℃ (-40 ℉). The tape has a shelf life of 24 months. It has an adhesion strength of 907 gf/in and the liner material is PET. The tape exhibits an electrical resistance of Z-axis 0.01 Ω.
Specifications
Color
Silver
Manufacturer
3M
Adhesive Type
Acrylic
Width (Imperial)
1 In
Component
Electrical Tape
Length (Imperial)
10 Yd
Width (Metric)
25.4 mm
Maximum Operating Temperature (Fahrenheit)
185 °F
Maximum Operating Temperature (Celsius)
85 °C
Sub Component
Conductive Adhesive Transfer Tape
Length (Metric)
9.144 M
Features
Anisotropic Z-axis electrical conductivity
Low-outgassing acrylic adhesive
PSA tack properties
Thermal curing not required
Easy to use in assembly operations
Can be applied as die-cut parts or in roll form
Halogen free*
RoHS compliant*
Downloads

Code: 473366
3M 7100308953 - 3M Electrically Conductive Adhesive Transfer Tape 9703, 1 in x 10 yds
$747.67
Sale Price
$623.06
SOLD BY THE CASE (1 Case = 12 Roll)
