Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 473365

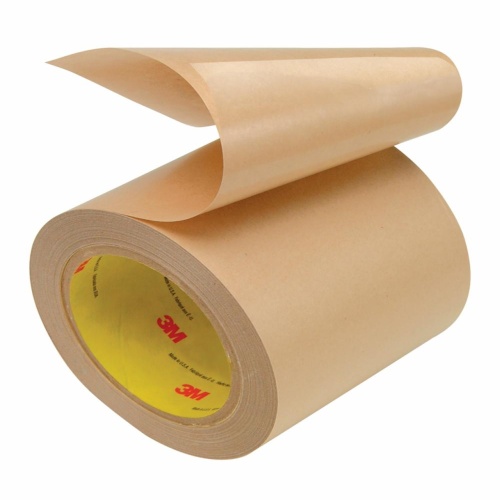

3M 7100306861 - 3M Electrically Conductive Adhesive Transfer Tape 9703, 4 in x 10 yds
Normally In Stock
3M Electrically Conductive Adhesive Transfer Tape 9703, 4 in x 10 yds - 7100306861
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$1834.57
Sale Price
$1528.81
SOLD BY THE CASE (1 Case = 8 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M 7100306861 - Conductive Adhesive Transfer Tapes are silver adhesive tapes suitable for various applications like camera modules, chassis, printed circuit boards, sensors, and flexible printed circuits. With an overall width of 4 in (101.6 mm) and length of 10 yd (9.144 m), these acrylic tapes have a total thickness of 0.05 mm (2 mil) excluding liner. They offer a maximum operating temperature of 85 ℃ (185 ℉) and a minimum temperature of -40 ℃ (-40 ℉). The adhesive strength is 907 gf/in. These tapes have a shelf life of 24 months and are made with a PET liner. They provide an electrical resistance of Z-axis 0.01 Ω.
Specifications
Color
Silver
Manufacturer
3M
Adhesive Type
Acrylic
Component
Electrical Tape
Width (Imperial)
4 In
Length (Imperial)
10 Yd
Maximum Operating Temperature (Fahrenheit)
185 °F
Maximum Operating Temperature (Celsius)
85 °C
Sub Component
Conductive Adhesive Transfer Tape
Width (Metric)
101.6 mm
Length (Metric)
9.144 M
Features
Anisotropic Z-axis electrical conductivity
Low-outgassing acrylic adhesive
PSA tack properties
Thermal curing not required
Easy to use in assembly operations
Can be applied as die-cut parts or in roll form
Halogen free*
RoHS compliant*
