Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

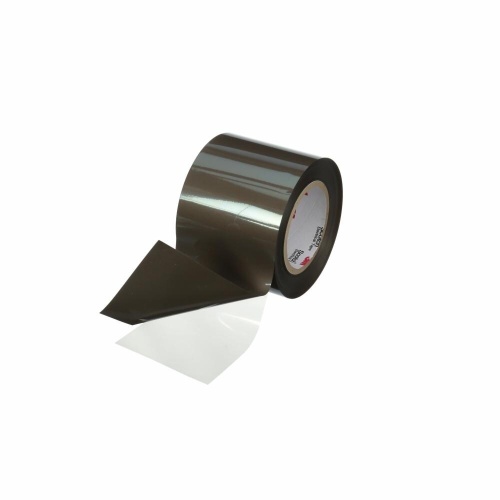

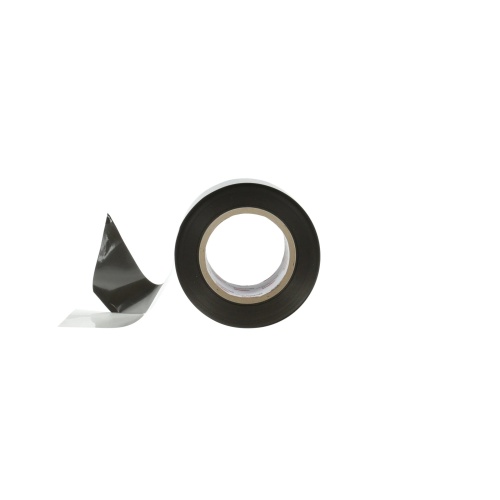

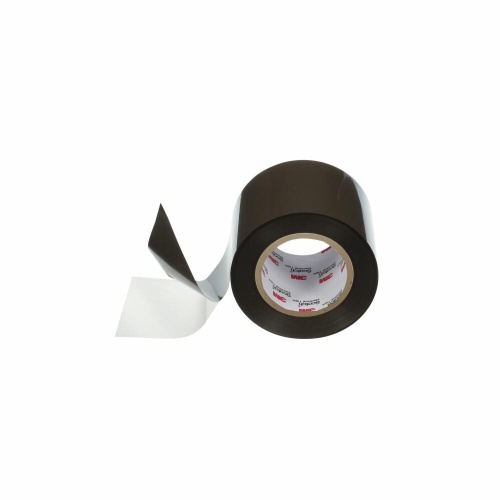

3M 7010532050 - 3M Electrically Conductive Double-Sided Tape 9711S, 1060 mm x 100 m,,100um
Normally In Stock
Code: 473303
3M Electrically Conductive Double-Sided Tape 9711S, 1060 mm x 100 m,,100um - 7010532050
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$8968.58
Sale Price
$7473.82
SOLD BY THE CASE (1 Case = 1 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M 7010532050 - Conductive Adhesive Transfer Tape 9711S is a gray, acrylic adhesive tape with a woven fabric backing material. It has an overall width of 41.732 inches (1, 060 mm) and an overall length of 109.361 yards (100 m). The tape is designed for bonding line gaps, chassis, EMI gaskets, flexible printed circuits, printed circuit boards, and sensors. It has a total tape thickness without liner of 0.1 mm (4 mil) and can withstand temperatures ranging from -40 to 121 ℃ (-40 to 250 ℉). The tape has a shelf life of 12 months and offers adhesion strength of 2000 gf/in. The liner material is PET, and the electrical resistance is XY-axis 0.2 Ω and Z-axis 0.05-0.1 Ω.
Specifications
Color
Gray
Manufacturer
3M
Adhesive Type
Acrylic
Component
Electrical Tape
Maximum Operating Temperature (Fahrenheit)
250 °F
Maximum Operating Temperature (Celsius)
121 °C
Length (Metric)
100 M
Sub Component
Conductive Adhesive Transfer Tape
Length (Imperial)
109.361 Yd
Width (Imperial)
41.732 In
Width (Metric)
1
Width (Metric)
060 mm
Features
Isotropic XYZ-axis conductivity through the adhesive
Excellent conformability and quick bonding
Good EMI shielding in bond line gap
Thicker construction conforms to non-flat surfaces
Improved electrical contact to small-size areas
Good handling and workability
High adhesion
Reliable grounding performance over time
