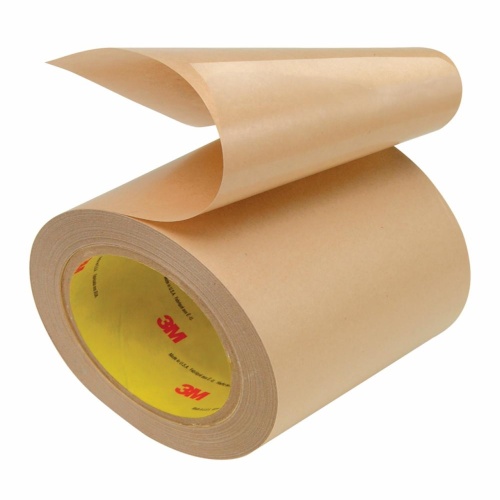

3M 7010333907 - 3M Electrically Conductive Adhesive Transfer Tape 9703, 1/4 in x 36 yd
Normally In Stock
Code: 473261
3M Electrically Conductive Adhesive Transfer Tape 9703, 1/4 in x 36 yd - 7010333907
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$2861.27
Sale Price
$2384.39
SOLD BY THE CASE (1 Case = 36 Roll)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M 7010333907 - Conductive Adhesive Transfer Tape 9703 is a silver-colored acrylic adhesive tape with a total thickness of 0.05 mm (2 mil) without liner. It has a width of 0.25 in (6.35 mm) and a length of 36 yd (32.918 m). This tape is suitable for use in camera modules, chassis, flexible printed circuits, printed circuit boards, and sensors. It has a maximum operating temperature of 85 ℃ (185 ℉) and a minimum operating temperature of -40 ℃ (-40 ℉). The tape has a shelf life of 24 months and provides an adhesion strength of 907 gf/in. It features a PET liner and exhibits electrical resistance in the Z-axis at 0.01 Ω.
Specifications
Color
Silver
Manufacturer
3M
Adhesive Type
Acrylic
Component
Electrical Tape
Length (Imperial)
36 Yd
Width (Imperial)
0.25 In
Maximum Operating Temperature (Fahrenheit)
185 °F
Maximum Operating Temperature (Celsius)
85 °C
Sub Component
Conductive Adhesive Transfer Tape
Length (Metric)
32.918 M
Width (Metric)
6.35 mm
Features
Anisotropic Z-axis electrical conductivity
Low-outgassing acrylic adhesive
PSA tack properties
Thermal curing not required
Easy to use in assembly operations
Can be applied as die-cut parts or in roll form
Halogen free*
RoHS compliant*
