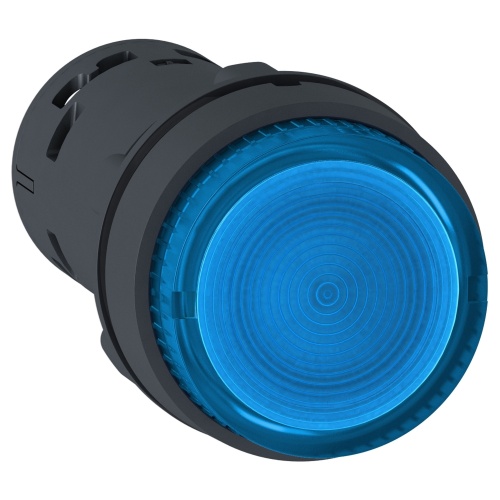

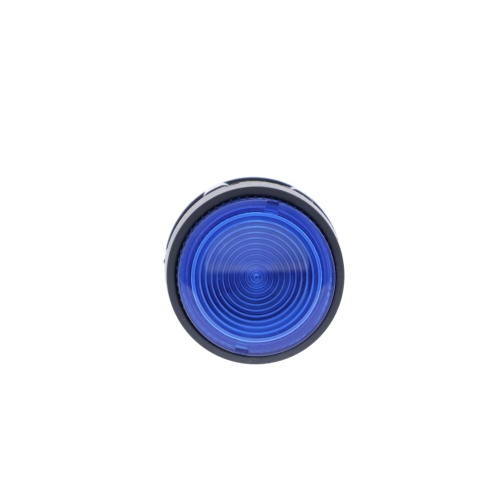

Schneider Electric XB7NW36B1 Harmony 22 mm Round Blue Plastic Push Button Illuminated Projected 24 V AC/DC 1 NO Monolithic Complete Product
Normally In Stock
Code: 47089
Schneider Electric XB7NW36B1 Harmony 22 mm Round Blue Plastic Push Button that is Illuminated with a Projected profile. Uses 24 V AC/DC and is a Monolithic Complete Product and has 1 NO Screw Clamp Terminals and is IP 65 rated and UL 508 certified. (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$68.88
Sale Price
$57.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric XB7NW36B1 Harmony 22 mm Round Blue Plastic Illuminated Push Button Monolithic Complete Product with a Projected profile is made of high quality material and is designed to be simple and flexible with Screw Clamp Terminals. Has 1 NO contacts with Spring return functionality. uses 24 V AC/DC and is IP 65 and UL 508 rated and is Unmarked.
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Color
Blue
(Switching-Indication) NEMA Rating
NEMA 12
(Switching-Indication) Contact Configuration
1 NO
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Composition
Plastic
(Switching-Indication) Contacts Connection Type

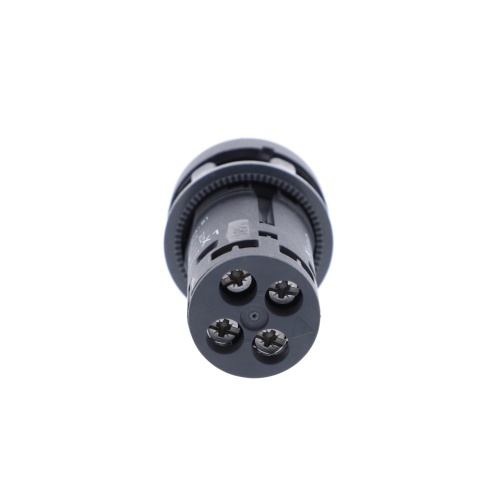

Screw Clamp Terminals
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) IP Rating
IP 65
(Switching-Indication) Current Consumption
18-27 mAmp
Manufacturer
Schneider Electric
(Switching-Indication) DC Voltage
24 Volt
(Switching-Indication) AC Voltage
24 Volt
Component
Monolithic Push Button
Features
This Harmony XB7, illuminated projecting monolithic blue push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals
It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections
It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, minimizing errors in machine control and enabling complex machine statuses to be read at a glance
It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments
It has a double insulated plastic bezel
Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
