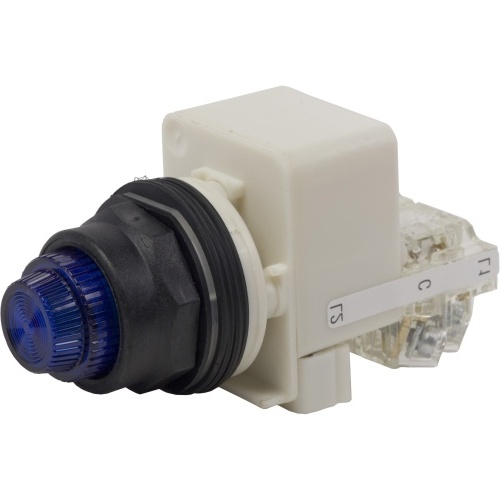

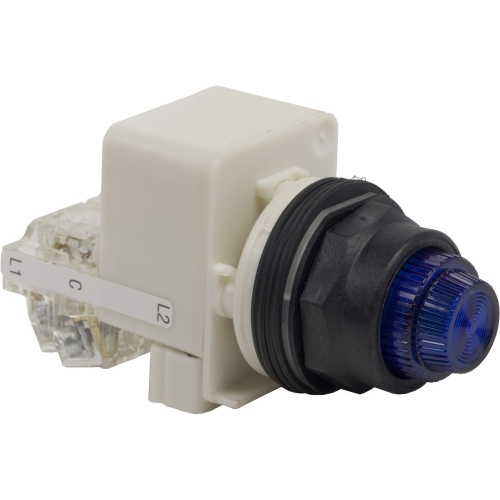

Schneider Electric 9001SKT38LLL31 Harmony 30 mm Round Blue Plastic Pilot Light Illuminated 120 V AC/DC Modular Complete Assembly
Normally In Stock
Code: 46790
Schneider Electric 9001SKT38LLL31 Harmony 30 mm Round Blue Plastic Pilot Light that is Illuminated . Uses 120 V AC/DC and is a Modular Complete Assembly and has Screw Clamp Terminals and is IP 66 rated and UL 508 certified.
Condition: New
Usually ships Same Day or Next Day$241.72
Sale Price
$201.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric 9001SKT38LLL31 Harmony 30 mm Round Blue Plastic Illuminated Pilot Light Modular Complete Assembly is made of high quality materials and is designed to be simple and flexible with Screw Clamp Terminals. Uses 120 V AC/DC and is IP 66 and UL 508 rated.
Specifications
(Switching-Indication) Size
30 mm
(Switching-Indication) Color
Blue
(Switching-Indication) NEMA Rating
NEMA 1
(Switching-Indication) NEMA Rating
NEMA 12
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 2
(Switching-Indication) NEMA Rating
NEMA 3
(Switching-Indication) NEMA Rating
NEMA 3R
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) NEMA Rating
NEMA 6
(Switching-Indication) Shape
Round
(Switching-Indication) Composition
Plastic
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) IP Rating
IP 66
(Switching-Indication) Operation
Push
Manufacturer
Schneider Electric
Component
Pilot Light
Features
This illuminated blue push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines,It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color,t is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments,It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections,High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
