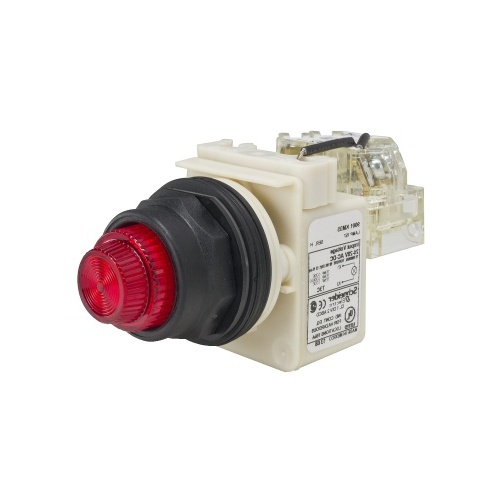

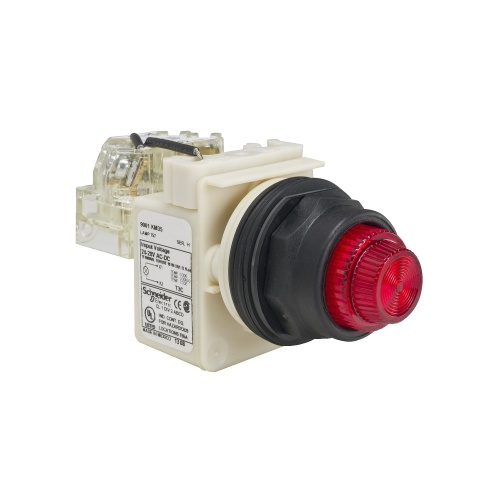

Schneider Electric 9001SKT35R31 Harmony 30 mm Round Plastic Pilot Light Non-Illuminated Modular Complete Assembly
Normally In Stock
Code: 46770
Schneider Electric 9001SKT35R31 Harmony 30 mm Round Plastic Pilot Light that is Non-Illuminated . This product is a Modular Complete Assembly and is IP 66 rated.
Condition: New
Usually ships Same Day or Next Day$204.90
Sale Price
$170.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric 9001SKT35R31 Harmony 30 mm Round Plastic Non-Illuminated Pilot Light Modular Complete Assembly is made of high quality materials and is designed to be simple and flexible. This product is IP 66 rated.
Specifications
(Switching-Indication) Size
30 mm
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Shape
Round
(Switching-Indication) Composition
Plastic
(Switching-Indication) IP Rating
IP 66
(Switching-Indication) Operation
Push
Manufacturer
Schneider Electric
Component
Pilot Light
Features
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications
These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more
Type SK operators have a plastic operator that mounts in a 1.18 inch round hole
This push-to-test pilot light has a plastic ring nut
By pushing on the pilot light lens, you can determine if the pilot light lamp is still working
This push-to-test pilot light has a 24-28 VAC/VDC full voltage light module with an incandencent lamp to provide the illumination
This operator has one 9001KA1 contact block mounted on the back
The contact block has one normally open and one normally closed contact
Contact block has a UL Type A600, UL Type Q600 and a 10A resistive VAC rating
The contacts in this contact block are double break direct acting
Contact block and light module will accept up to two 12AWG to 24 AWG solid or stranded wires
The contact block and light module terminals are protected to meeting VDE 0106 Part 100
This push-to-test pilot light has an red plastic fresnel pilot light lens,When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments
This operator is UL Listed and CSA certified.
