Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 46685

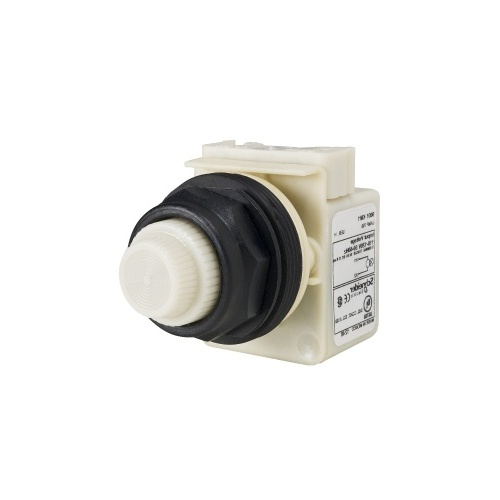

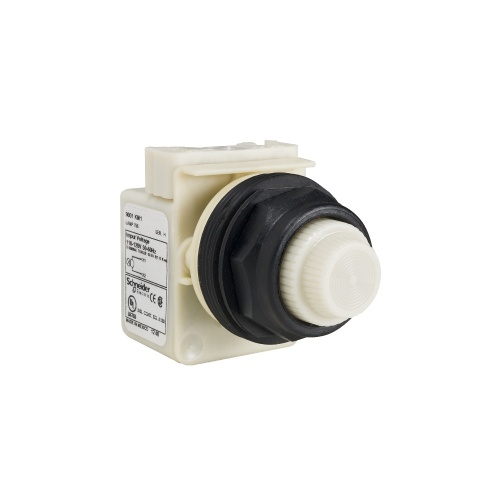

Schneider Electric 9001SKP3W31 Harmony 30 mm Round White Plastic Pilot Light Illuminated 208-220 V AC Modular Complete Assembly
Normally In Stock
Schneider Electric 9001SKP3W31 Harmony 30 mm Round White Plastic Pilot Light that is Illuminated . Uses 208-220 V AC and is a Modular Complete Assembly and has Screw Clamp Terminals and is IP 66 rated and UL 508 certified.
Condition: New
Usually ships Same Day or Next Day$194.64
Sale Price
$162.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric 9001SKP3W31 Harmony 30 mm Round White Plastic Illuminated Pilot Light Modular Complete Assembly is made of high quality materials and is designed to be simple and flexible with Screw Clamp Terminals. Uses 208-220 V AC and is IP 66 and UL 508 rated.
Specifications
(Switching-Indication) Size
30 mm
(Switching-Indication) Color
White
(Switching-Indication) NEMA Rating
NEMA 1
(Switching-Indication) NEMA Rating
NEMA 12
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 2
(Switching-Indication) NEMA Rating
NEMA 3
(Switching-Indication) NEMA Rating
NEMA 3R
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) NEMA Rating
NEMA 6
(Switching-Indication) Shape
Round
(Switching-Indication) Composition
Plastic
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) IP Rating
IP 66
Manufacturer
Schneider Electric
Component
Pilot Light
Features
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications
These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more
Type SK operators have a plastic operator that mounts in a 1.18 inch round hole
This standard pilot light has a plastic ring nut
This pilot light has a 208/220 VAC 50/60 Hz transformer light module to provide the illumination
The light module has an incandescent lamp
This operator is supplied with a white plastic fresnel pilot light lens
When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments
This operator is UL Listed and CSA certified
\This product is certified by NEMA and UL 508
It meets JIS C8201-5-1, EN/IEC 60947-5-4, JIS C 852, CSA C22.2 No 14, EN/IEC 60947-5-1 and JIS C8201-1 standards.\,\It is installed into a Ø 30mm panel cutout.\,\The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications.\
