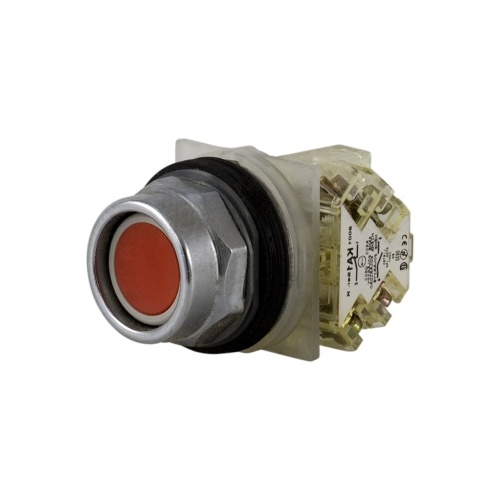

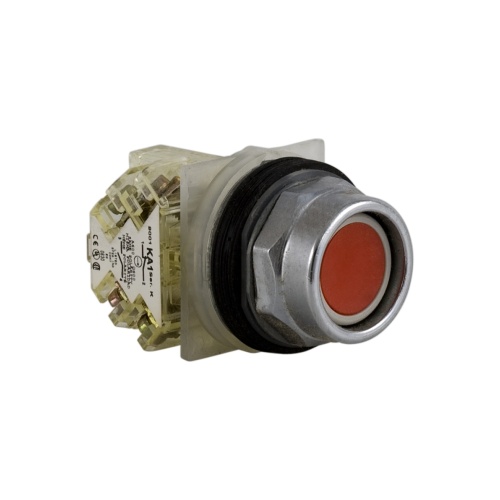

Schneider Electric 9001KR2RH13 Harmony 30 mm Red recessed Chromium plated metal Push Button Non-Illuminated 1 C/O Modular Complete Assembly
Normally In Stock
Code: 46041
Schneider Electric 9001KR2RH13 Harmony 30 mm Red recessed Chromium plated metal Push Button that is Non-Illuminated . This product is a Modular Complete Assembly and has 1 C/O Screw Clamp Terminals.
Condition: New
Usually ships Same Day or Next Day$109.19
Sale Price
$90.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric 9001KR2RH13 Harmony 30 mm Red recessed Chromium plated metal Non-Illuminated Push Button Modular Complete Assembly is made of high quality material and is designed to be simple and flexible with Screw Clamp Terminals. Has 1 C/O contacts with Spring return functionality.
Specifications
(Switching-Indication) Size
30 mm
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) NEMA Rating
NEMA 1
(Switching-Indication) NEMA Rating
NEMA 12
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 2
(Switching-Indication) NEMA Rating
NEMA 3
(Switching-Indication) NEMA Rating
NEMA 3R
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) NEMA Rating
NEMA 6
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) Color
Red
(Switching-Indication) Contact Configuration
1 NO/NC
(Switching-Indication) Amperage
10 Amp
Manufacturer
Schneider Electric
Component
Modular Push Button
Features
This Harmony 9001K, modular recessed red push button with extended guard has 2 positions, operates with spring return mechanism
It has a chromium-plated metal bezel, has 1 x NO + 1 x NC contact and uses screw-clamp terminals
This recessed push button with extended guard provides an ergonomic interface for controlling your machines
It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections
Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations
It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments
Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
