Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

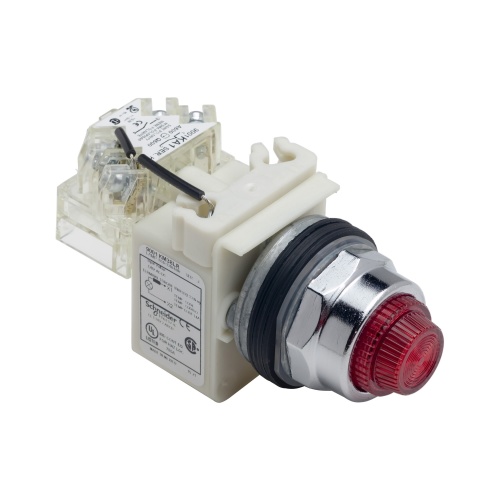

Schneider Electric 9001KT38LRR31 Harmony 30 mm Octagonal Chromium plated metal Pilot Light Illuminated Projecting 120 V AC/DC 1 NO Modular Complete Assembly
Normally In Stock
Code: 45569
Schneider Electric 9001KT38LRR31 Harmony 30 mm Octagonal Chromium plated metal Pilot Light that is Illuminated with a Projecting profile. Uses 120 V AC/DC and is a Modular Complete Assembly and has 1 NO Screw Clamp Terminals and is IP 66 rated and UL 508 certified.
Condition: New
Usually ships Same Day or Next Day$241.72
Sale Price
$201.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric 9001KT38LRR31 Harmony 30 mm Octagonal Chromium plated metal Illuminated Pilot Light Modular Complete Assembly is made of high quality materials and is designed to be simple and flexible with Screw Clamp Terminals. Uses 120 V AC/DC and is IP 66 and UL 508 rated.
Specifications
(Switching-Indication) Size
30 mm
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) NEMA Rating
NEMA 1
(Switching-Indication) NEMA Rating
NEMA 12
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 2
(Switching-Indication) NEMA Rating
NEMA 3
(Switching-Indication) NEMA Rating
NEMA 3R
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) NEMA Rating
NEMA 6
(Switching-Indication) Contact Configuration
1 NO
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) IP Rating
IP 66
(Switching-Indication) Shape
Octagonal
Manufacturer
Schneider Electric
Component
Pilot Light
Features
Improved security thanks to finger-safe contact blocks and light modules
Robustness to withstand the harshest environments
Easy, secure mounting system
Downloads
Code: 45569
Schneider Electric 9001KT38LRR31 Harmony 30 mm Octagonal Chromium plated metal Pilot Light Illuminated Projecting 120 V AC/DC 1 NO Modular Complete Assembly
$241.72
Sale Price
$201.43
