The 9001K push button line has a large variety of operators and accessories for heavy industry applications

These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more

Type K operators have a die cast operator that mounts in a 1.18 inch round hole

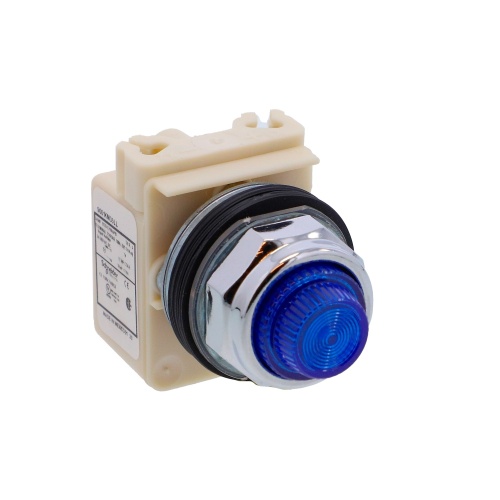

This standard pilot light has a die cast ring nut

This pilot light has a 24/28 VAC/VDC light module to provide the illumination

The light module has a blue LED lamp

This operator is supplied with a blue plastic fresnel pilot light lens

When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments

This operator is UL Listed and CSA certified

\This product is certified by NEMA and UL 508

It meets EN/IEC 60947-5-4, JIS C 852, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1 and JIS C 852 standards.\,\It is installed into a Ø 30mm panel cutout.\,\A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs.\,\The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications.\
