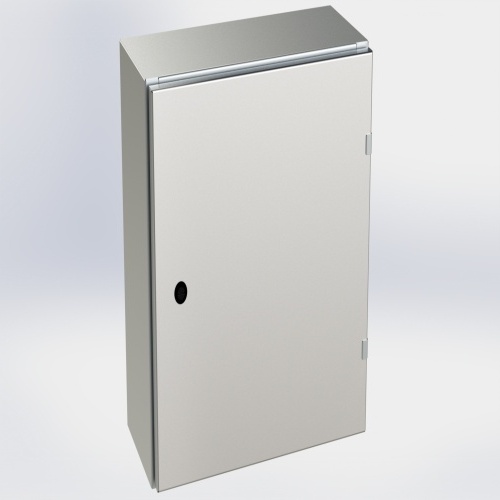

Application: Designed to house electrical and electronic controls, instruments and components in areas which may be regularly hosed down or are in very wet conditions. Provides protection from dust, dirt, oil, and water. For outdoor application a drip shield and drain vent is recommended.For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

0.075 In. stainless steel Type 316/316L

Seams continuously welded and ground smooth

Flange trough collar around all sides of door opening

Pour in place oil & water resistant gasket

Collar studs provided for mounting optional panels

Stainless steel concealed hinges

Removable and interchangeable doors

Black quarter turn latches

Latches are opened or closed with a screwdriver (optional tamper-resistant inserts are available)

Mounting holes in back of enclosure

Mounting hardware, sealing washer and hole plug included

Removable print pocket furnished if height and width of enclosure is greater than 12 inches

Ground studs on door and body.
