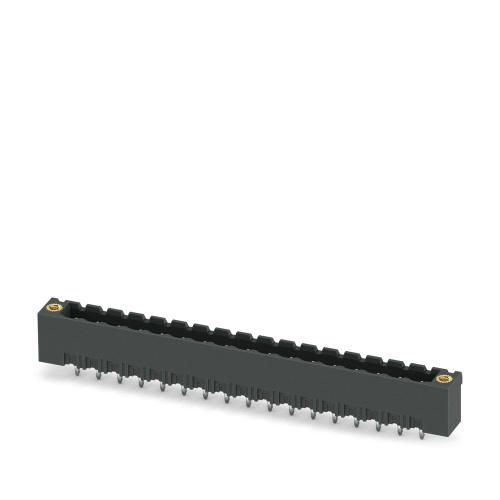

Phoenix Contact 5452507 PCB header BCH-508VF-17 BK
Normally In Stock
Code: 453097
Phoenix Contact 5452507 BCH-508VF-17 BK - PCB header, 12 Amp, 5.08 mm Pitch, Tin -
Condition: New
Usually ships Within 1 Week$6.10
Sale Price
$5.08
MUST BUY IN PACKS OF 100
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 5452507 The PCB header specifications include a nominal cross-sectional area of 2.5 mm², with a black color and a rated voltage of up to 320V (III/2). It features a standard pin layout with linear pinning, requiring wave soldering for mounting, and is part of the BASICLINE 2,5 plug-in system, which includes 17 pins arranged in a single row. The header has a pitch of 5.08 mm, a contact surface made of Sn, and uses a screw locking mechanism for secure connection.
Specifications
Connector Amperage
12 Amp
Connector Color
Black
Connector Material
Tin
Manufacturer
Phoenix Contact
Component
PCB
Sub Component
PCB Header
Number of Positions
17
Number of Connections
17
Connector Voltage
320 Volt
Connector Mounting Type
Wave Soldering
Connector Pitch
5.08 mm
Features
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Well-known mounting principle allows worldwide use
Vertical connection enables multi-row arrangement on the PCB
Easy PCB replacement thanks to plug-in modules
Screwable flange for superior mechanical stability
