Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 45226

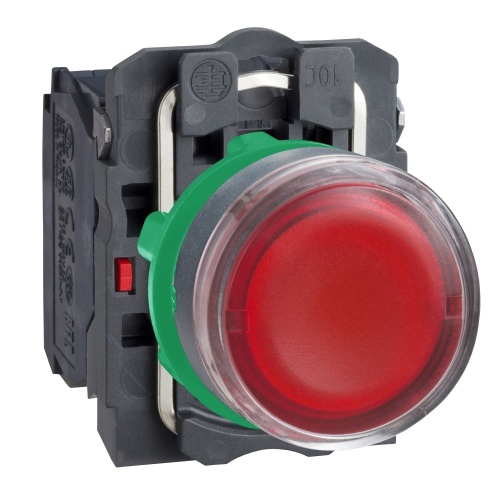

Schneider Electric XB5AW3445 Harmony 22 mm Round Red Dark gray plastic Push Button Illuminated Flush 220-240 V AC 1 NO + 1 NC Modular Complete Assembly
Normally In Stock
Schneider Electric XB5AW3445 Harmony 22 mm Round Red Dark gray plastic Push Button that is Illuminated with a Flush profile. Uses 220-240 V AC and is a Modular Complete Assembly and has 1 NO + 1 NC Screw Clamp Terminals and is IP 69 rated and UL 508 certified.
Condition: New
Usually ships Same Day or Next Day$220.49
Sale Price
$183.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric XB5AW3445 Harmony 22 mm Round Red Dark gray plastic Illuminated Push Button Modular Complete Assembly with a Flush profile is made of high quality material and is designed to be simple and flexible with Screw Clamp Terminals. Has 1 NO + 1 NC contacts with Spring return functionality. uses 220-240 V AC and is IP 69 and UL 508 rated and is Unmarked.
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) Contact Configuration
1 NO
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Composition
Plastic
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) Color
Red
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) IP Rating
IP 69
Manufacturer
Schneider Electric
(Switching-Indication) AC Voltage
220-240 Volt
Component
Modular Push Button
Features
This Harmony XB5, plain lens illuminated modular red push button operates with a spring return / impulse mechanism, is supplied with 220V to 240V AC/DC, uses an integral transformer and has screw-clamp terminals
This illuminated push button with integral transformer provides an ergonomic and visual interface for controlling your machines

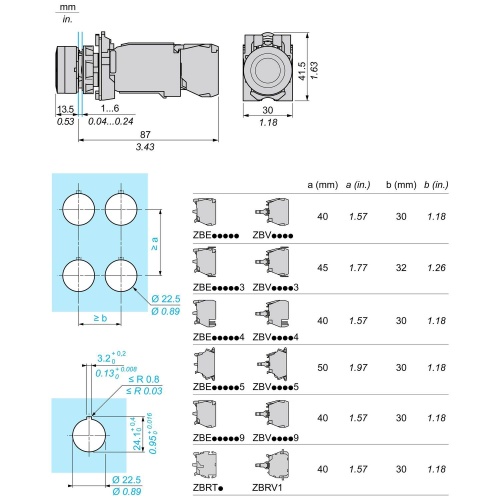

It is easily installed into standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections
It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color
It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments
Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
