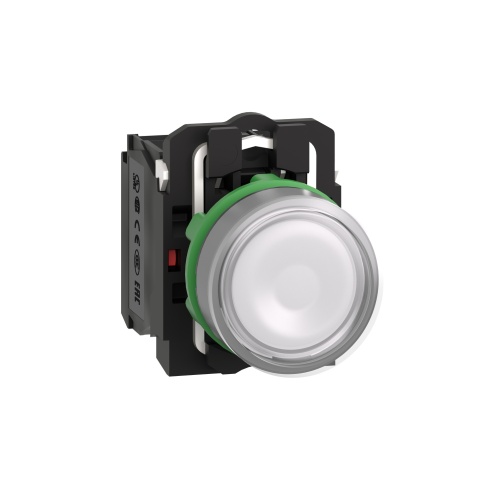

Schneider Electric XB5AW31B5 Harmony 22 mm Round White Dark gray plastic Push Button Illuminated Flush 24 V AC/DC 1 NO + 1 NC Modular Complete Assembly
Normally In Stock
Code: 45217
Schneider Electric XB5AW31B5 Harmony 22 mm Round White Dark gray plastic Push Button that is Illuminated with a Flush profile. Uses 24 V AC/DC and is a Modular Complete Assembly and has 1 NO + 1 NC Screw Clamp Terminals and is IP 69 rated and UL 508 certified.
Condition: New
Usually ships Same Day or Next Day$118.32
Sale Price
$98.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric XB5AW31B5 Harmony 22 mm Round White Dark gray plastic Illuminated Push Button Modular Complete Assembly with a Flush profile is made of high quality material and is designed to be simple and flexible with Screw Clamp Terminals. Has 1 NO + 1 NC contacts with Spring return functionality. uses 24 V AC/DC and is IP 69 and UL 508 rated and is Unmarked.
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Color
White
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) Contact Configuration
1 NO
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Composition
Plastic
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) IP Rating
IP 69
(Switching-Indication) Current Consumption
18 mAmp
Manufacturer
Schneider Electric
(Switching-Indication) DC Voltage
24 Volt
(Switching-Indication) AC Voltage
24 Volt
Component
Modular Push Button
Features
Universal LED block to be used for all colors
Improved color intensity and brightness
Quick and easy assembly and disassembly
