Code: 451195

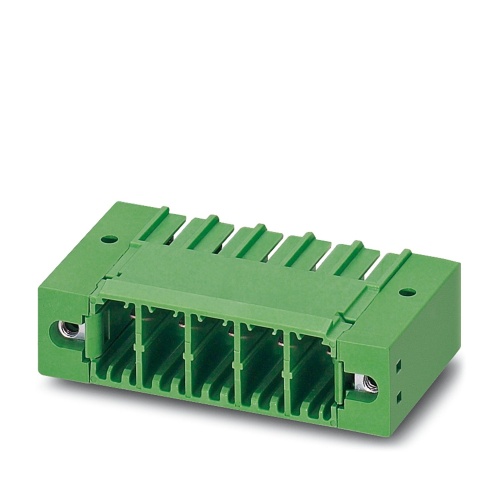

Phoenix Contact 1831921 PCB header PC 5/ 4-GF-7,62 BK
Normally In Stock
Phoenix Contact 1831921 PC 5/ 4-GF-7,62 BK - PCB header, 41 Amp, 7.62 mm Pitch, Tin -
Condition: New
Usually ships Within 1 Week$6.49
Sale Price
$5.41
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1831921 The PCB header has a nominal cross-sectional area of 6mm² and is black in color, capable of handling up to 32A of current while rated at 630V. It features a Sn contact surface with a linear pinning layout, measuring 7.62mm apart, and uses wave soldering for mounting. The header consists of 4 positions, aligns with the standard Pin connector pattern, is secured by screw locking mechanism, and comes packaged in cardboard, suitable for use in the COMBICON PC 5 plug-in system.
Specifications
Connector Color
Black
Connector Amperage
41 Amp
Connector Material
Tin
Component
PCB Header
Manufacturer
Phoenix Contact
Number of Positions
4
Connector Voltage
630 Volt
Connector Mounting Type
Wave Soldering
Connector Pitch
7.62 mm
Features
Well-known mounting principle allows worldwide use
Screwable flange for superior mechanical stability
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
