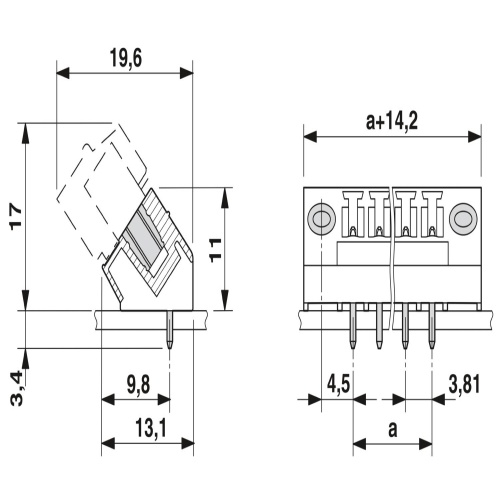

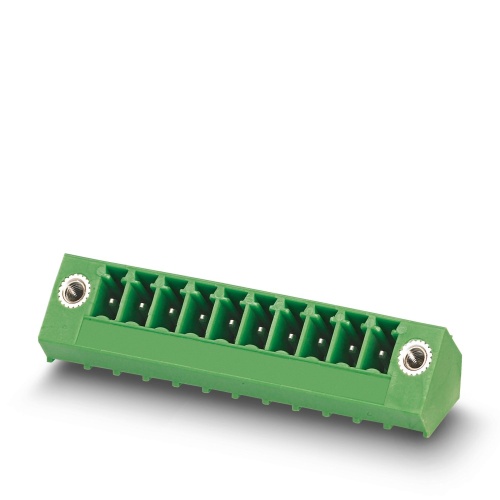

Phoenix Contact 1827486 The PCB headers have a nominal cross-sectional area of 1.5 mm² and are green in color, carrying a maximum current of 8 A, with a rated voltage of 160 V for safety. These headers feature a Sn contact surface, utilize pin connections, and include eight potential lines, arranged linearly across one row of eight positions. Each position has an individual solder pin that extends 3.4 mm from the board, with each potential having just one solder pin attached to it, using a standard plug-in system and screw locking mechanism for secure mounting via threaded flange in packaged cardboard containers.
