Schneider Electric XB4BW3445 Harmony 22 mm Round Red Chromium plated metal Push Button Illuminated Flush 1 NO + 1 NC Modular Complete Assembly
Normally In Stock
Code: 44932
Schneider Electric XB4BW3445 Harmony 22 mm Round Red Chromium plated metal Push Button that is Illuminated with a Flush profile. This product is a Modular Complete Assembly and has 1 NO + 1 NC and is IP 69 rated and UL 508 certified.
Condition: New
Usually ships Same Day or Next Day$283.07
Sale Price
$235.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric XB4BW3445 Harmony 22 mm Round Red Chromium plated metal Illuminated Push Button Modular Complete Assembly with a Flush profile is made of high quality material and is designed to be simple and flexible. Has 1 NO + 1 NC contacts with Spring return functionality. This product is IP 69 and UL 508 rated and is Unmarked.
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) Contact Configuration
1 NO
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Color
Red
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) IP Rating
IP 69
Manufacturer
Schneider Electric
Component
Modular Push Button
Features

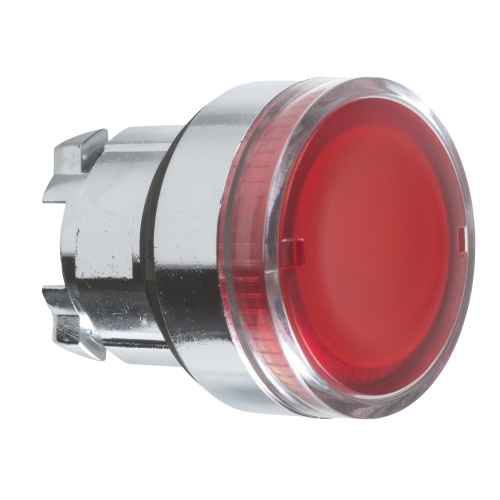

This Harmony XB4 plain lens illuminated modular red push button operates with a spring return / impulse mechanism, is supplied with 220V to 240V AC, uses an integral transformer with Integral LED
It has a metal bezel
This illuminated push button with integral transformer provides an ergonomic and visual interface for controlling your machines

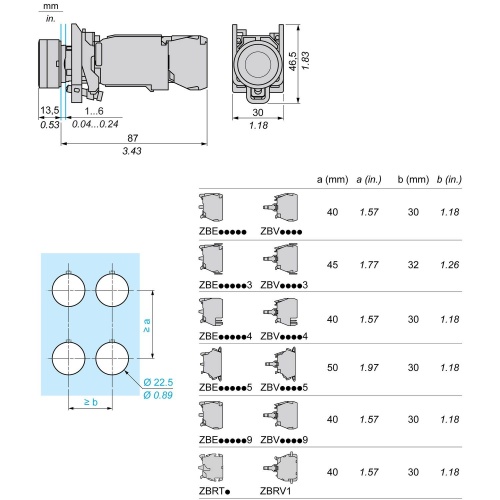

It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections
It is clearly distinguishable visually at a distance thanks to a bright and long lasting BA9s base and LED illumination
It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.
