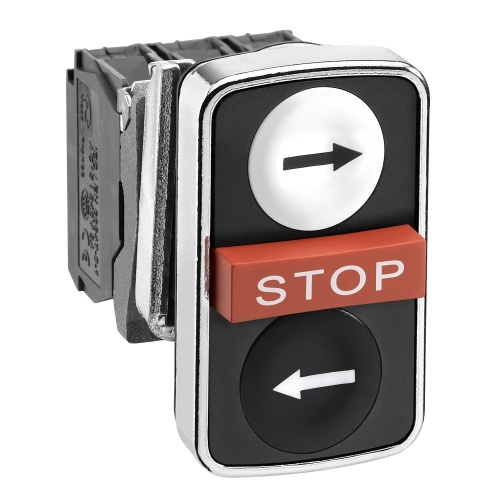

Schneider Electric XB4BA711237 Harmony 22 mm Rectangular Black, Red and White Chromium plated metal Multiple Push Buttons Non-Illuminated Projecting and Flush 1 NO + 1 NC Modular Complete Assembly
Normally In Stock
Code: 44898
Schneider Electric XB4BA711237 Harmony 22 mm Rectangular Black, Red and White Chromium plated metal Multiple Push Buttons that is Non-Illuminated with a Projecting and Flush profile. This product is a Modular Complete Assembly and has 1 NO + 1 NC and is IP 69 rated and UL 508 cer
Condition: New
Usually ships Same Day or Next Day$138.94
Sale Price
$115.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric XB4BA711237 Harmony 22 mm Rectangular Black, Red and White Chromium plated metal Non-Illuminated Multiple Push Buttons Modular Complete Assembly with a Projecting and Flush profile is made of high quality material and is designed to be simple and flexible. Has 1 NO + 1 NC contacts with Spring return functionality. This product is IP 69 and UL 508 rated and is Marked White ''right arrow'' - black ''left arrow'' - red ''STOP''.
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Color
Black
(Switching-Indication) Color
White
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) Contact Configuration
1 NO
(Switching-Indication) Size
22 mm
(Switching-Indication) Color
Red
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Shape
Rectangular
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) IP Rating
IP 69
Manufacturer
Schneider Electric
Component
Modular Push Button
Features
This Harmony XB4 triple-headed modular push button has 1 white, 1 red, and 1 black buttons, operates witha spring return / impulse mechanism
It has a metal bezel
This 3-headed push button provides a complete 3 button interface to your machines with a single panel cut-out
It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections
Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations
It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
