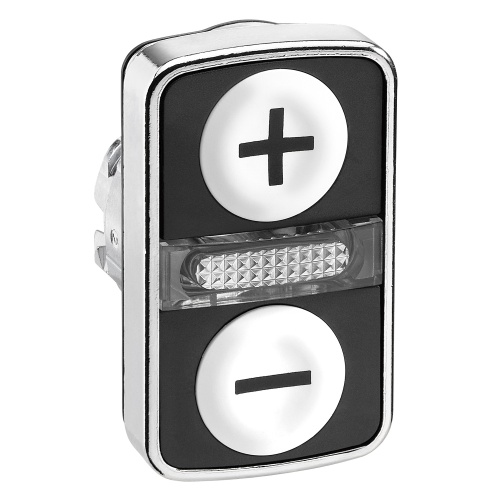

Schneider Electric ZB4BW7A1715 Harmony 22 mm Rectangular White Chromium plated metal Multiple Push Buttons Flush Modular Heads
Normally In Stock
Schneider Electric ZB4BW7A1715 Harmony 22 mm Rectangular White Chromium plated metal Multiple Push Buttons that is with a Flush profile. This product is a Modular Heads and and is IP 69 rated and UL 508 certified.
Condition: New
Usually ships Same Day or Next Day$58.96
Sale Price
$49.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric ZB4BW7A1715 Harmony 22 mm Rectangular White Chromium plated metal Multiple Push Buttons Modular Heads with a Flush profile is made of high quality material and is designed to be simple and flexible. Has Spring return functionality. This product is IP 69 and UL 508 rated and is Marked White ''+'' - white ''-''.
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Color
White
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) Size
22 mm
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Shape
Rectangular
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) IP Rating
IP 69
Sub Component
Head
Manufacturer
Schneider Electric
Component
Accessories
Features
This Harmony XB4, illuminated double head has 2 white buttons and 1 central white pilot light, operates with a spring return / impulse mechanism
It is marked with \+\ and \-\symbols
This double head provides a versatile interface for controlling your machines
It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly
It is clearly distinguishable visually at a distance thanks to its pilot light and illuminated head with clear colors, minimizing errors in machine control
It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66
It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance
It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery
Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product
It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
