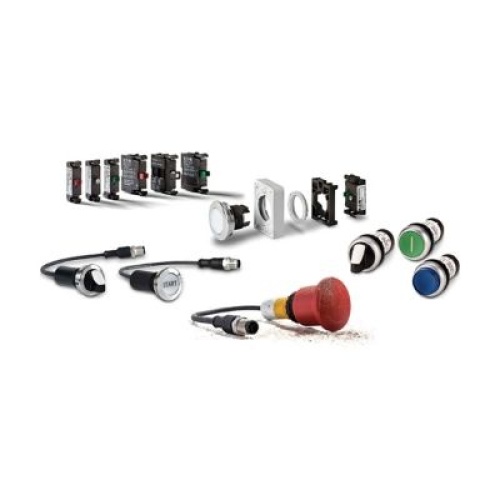

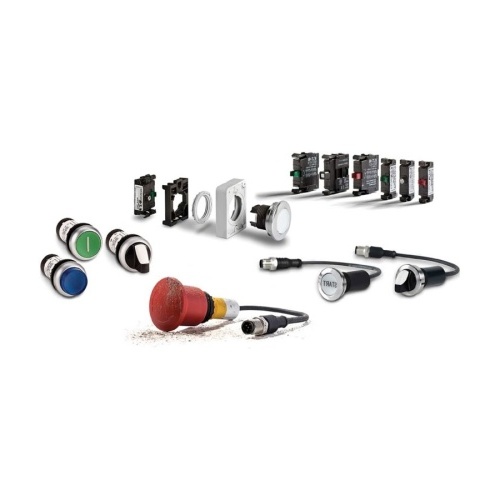

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 448376
Eaton M22M-DL-R-K11-230R Modular Pushbutton, M22 Series, 22.5 mm, Red
Normally In Stock
Eaton M22M-DL-R-K11-230R - RMQ-Titan Modular *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$110.90
Sale Price
$92.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton M22M-DL-R-K11-230R - M22 modular pushbutton, 22.5 mm, Metal, Illuminated flush momentary, Red lens, 1NO-1NC, 85-264 Vac/dc, NEMA 4x, 13, IP67, IP69K (IP66 key-release)
Specifications
(Switching-Indication) IP Rating
IP67
(Switching-Indication) IP Rating
IP69K
(Switching-Indication) Color
Red
(Switching-Indication) Contact Configuration
1 NO + 1 NC
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) Operation
Momentary
Component
Push Button
(Switching-Indication) Size
22.5 mm
Manufacturer
Eaton
(Switching-Indication) Push Button Type
Flush
Features
Modular and flexible
Plastic construction with silver, black and metal bezel options
Stackable contact blocks
Spring-cage terminal blocks
Traditional contact elements (M22-K) and indicating lights (M22-LED) with 45 mm depth
Flat contact elements (M22-FK) and indicating lights (M22-FLED) with 29.5 mm depth
Multi-color indicating lights (M22-FLED-RGB and M22-FLED-RG) with up to 7 colors with a single sku IP65/66/67/69K
