Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 44817

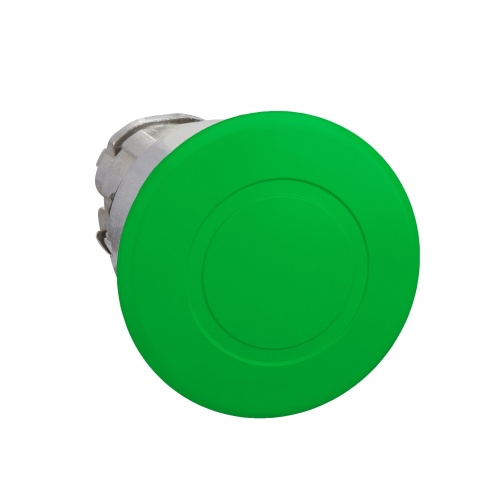

Schneider Electric ZB4BT3 Harmony 22 mm Round Green Chromium plated metal Mushroom Button Non-Illuminated Mushroom Modular Head
Normally In Stock
Schneider Electric ZB4BT3 Harmony 22 mm Round Green Chromium plated metal Mushroom Button that is Non-Illuminated with a Mushroom profile. This product is a Modular Head and and is IP 69 rated and UL 508 certified.
Condition: New
Usually ships Same Day or Next Day$46.70
Sale Price
$38.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric ZB4BT3 Harmony 22 mm Round Green Chromium plated metal Non-Illuminated Mushroom Button Modular Head with a Mushroom profile is made of high quality material and is designed to be simple and flexible. Has Latching functionality. This product is IP 69 and UL 508 rated and is Unmarked.
Specifications
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Profile
Standard
(Switching-Indication) Key Withdrawl Position
Center
(Switching-Indication) Color
Red
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) IP Rating
IP 69
(Switching-Indication) IP Rating
IP 66
(Switching-Indication) Operation
Latching
(Switching-Indication) IP Rating
IP 67
(Switching-Indication) Operation
Trigger
(Switching-Indication) Operation
Key
(Switching-Indication) IP Rating
IP 69K
Sub Component
Head
Manufacturer
Schneider Electric
Component
Accessories
Features
This Harmony XB4, 40mm mushroom green button head operates with latched push-pull mechanism
This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy
It is easily combined with Harmony range of contact blocks to perform a large variety of control functions
It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape
It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66
It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance
It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery
Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product
Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.
Code: 44817
Schneider Electric ZB4BT3 Harmony 22 mm Round Green Chromium plated metal Mushroom Button Non-Illuminated Mushroom Modular Head
$46.70
Sale Price
$38.92
