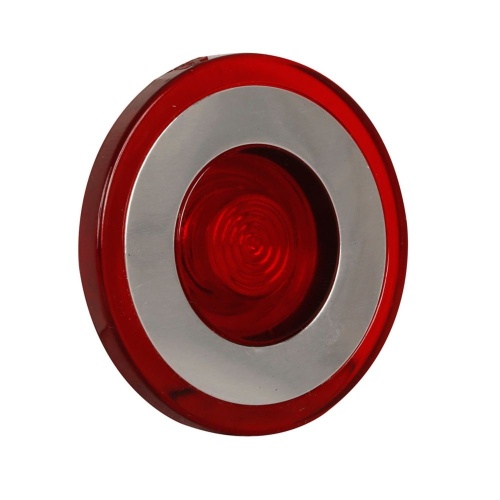

Eaton E34GDBC2N8-1K3X Pushbutton, E34 Series, 30.5 mm, Red
Normally In Stock
Code: 447482
Eaton E34GDBC2N8-1K3X - Corrosion Resistant - Assembled at Factory. K3 Thrust Washer included to meet Ford Motor Co mounting specifications. *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$183.46
Sale Price
$152.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E34GDBC2N8-1K3X - E34 pushbutton, 30.5 mm, Corrosion Resistant, 40 mm, NEMA 3, 3R, 4, 4X, 12, 13, Two-position, Maintained push and pull, Standard, Red actuator, Plastic bus, EMER. STOP, 1NO-1NC, Non-illuminated
Specifications
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Positions
2 Positions
(Switching-Indication) NEMA Rating
NEMA 12
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 3
(Switching-Indication) NEMA Rating
NEMA 3R
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) Color
Red
(Switching-Indication) Contact Configuration
1 NO + 1 NC
(Switching-Indication) NEMA Rating
NEMA 4X
Component
Push Button
Manufacturer
Eaton
(Switching-Indication) Size
30.5 mm
(Switching-Indication) Push Button Type
Standard
(Switching-Indication) Operation
Push: Maintained
(Switching-Indication) Operation
Pull: Maintained
Features
Enclosed silver contacts with reliability nibs
Diaphragm seals with drainage holes
Grounding nibs on the self-grounding operators
Durable chrome finish with added corrosion resistance
Rugged, one-piece metal body
Controlled compression sealing gasket
Widest variety of product offering using a single metal operator housing
NEMA Class 1 Div 2 rating
Epoxy-coated metal operators
FDA approved for sanitary chemical resistance requirements
