Code: 447107

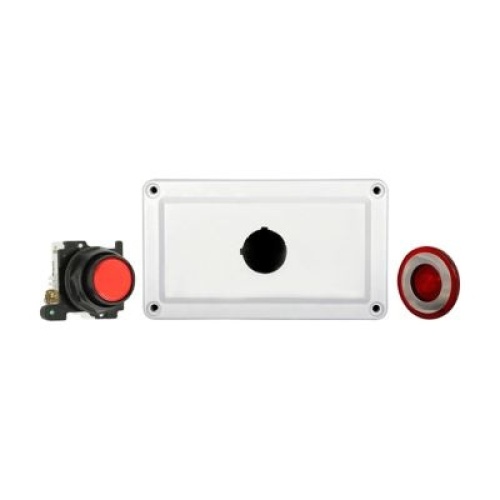

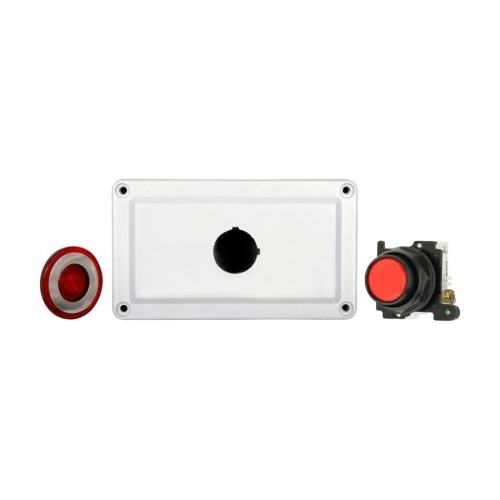

Eaton E34EX828RG2A Pushbutton, E34 Series, 30.5 mm, Red
Normally In Stock
Eaton E34EX828RG2A Pushbutton, E34 Series, 30.5 mm, Red *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$733.34
Sale Price
$611.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E34EX828RG2A - 30.5 mm Heavy-Duty Corrosion Resistant Pushbutton, Class I Division 2, Extended, Red, Plastic Actuator, Black bezel, 1NO-1NC, Bayonet base, Illuminated, LED, full voltage, 120 Vac Light Unit, Momentary, Guarded, E34 Series
Specifications
(Switching-Indication) NEMA Rating
NEMA 12
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 3
(Switching-Indication) NEMA Rating
NEMA 3R
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) Color
Red
(Switching-Indication) Contact Configuration
1 NO + 1 NC
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) Operation
Momentary
(Switching-Indication) AC Voltage
120 VAC
Component
Push Button
Manufacturer
Eaton
(Switching-Indication) Size
30.5 mm
(Switching-Indication) Push Button Type
Extended - Guarded
Features
Enclosed silver contacts with reliability nibs
Diaphragm seals with drainage holes
Grounding nibs on the self-grounding operators
Durable chrome finish with added corrosion resistance
Rugged, one-piece metal body
Controlled compression sealing gasket
Widest variety of product offering using a single metal operator housing
NEMA Class 1 Div 2 rating
Epoxy-coated metal operators
FDA approved for sanitary chemical resistance requirements
