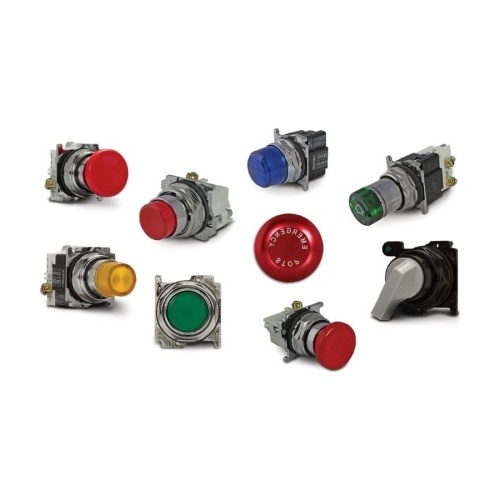

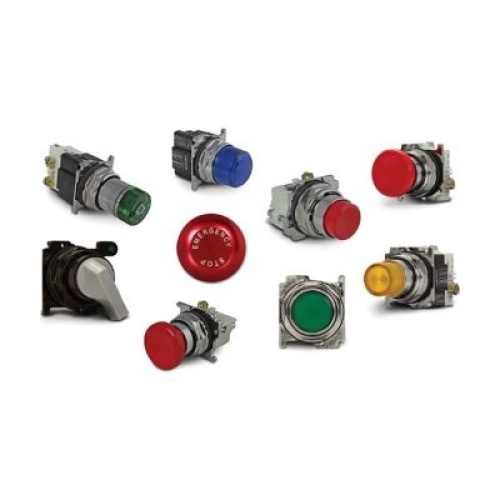

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 446442
Eaton E22HDB3 Pushbutton, E22 Series, 22.5 mm, Green
Normally In Stock
Eaton E22HDB3 - Non-metallic Heavy-Duty - Will accept a maximum of 2 contact blocks when used with supplied 3-way adapter. 5-way mounting adapter cannot be used with this operator. Lamp extender included. *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$83.11
Sale Price
$69.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E22HDB3 - 22.5 mm Non-metallic Heavy-Duty Actuator Push-Pull Operator,Standard Actuator,Green,Plastic,Illuminated,No light unit,Three-position,Momentary push and pull, maintained intermediate,E22 Series
Specifications
(Switching-Indication) Positions
3 Positions
(Switching-Indication) NEMA Rating
NEMA 12
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 3
(Switching-Indication) NEMA Rating
NEMA 3R
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) Color
Green
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) NEMA Rating
NEMA 4X
Component
Push Button
(Switching-Indication) Size
22.5 mm
Manufacturer
Eaton
(Switching-Indication) Push Button Type
Standard
(Switching-Indication) Operation
Push: Momentary
(Switching-Indication) Operation
Intermediate: Maintained
(Switching-Indication) Operation
Pull: Momentary
(Switching-Indication) Legend
OPEN
Features
Eaton’s Cutler-Hammer® 22.5 mm industrial heavy-duty pushbutton line offers a wide array of functional, smartly styled illuminated and nonilluminated pushbuttons, selector switches, push-pulls, alternate action and twistto-release operators. The complete line also includes transformer, full voltage, resistor, LED or neon light units
