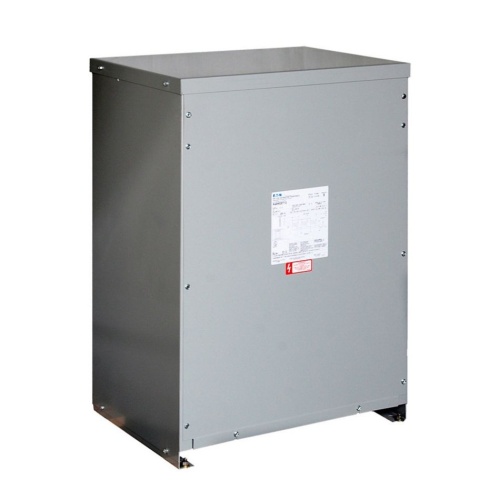

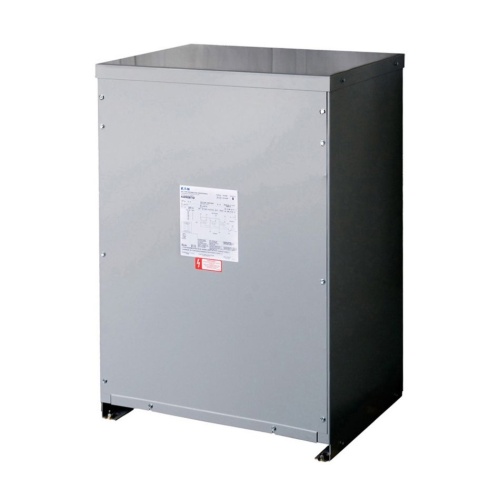

Eaton N48M28B15CUNV Non-Ventilated Transformer - Three Phase, 15 kVA
Normally In Stock
Code: 444605
Eaton N48M28B15CUNV - Three Phase - Max Input: 480V - Max Output: 208Y/120V - 15 kVA - Copper Windings
Condition: New
Usually ships Same Day or Next Day$39584.38
Sale Price
$32986.98
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton N48M28B15CUNV - K-Factor Non Linear Transformer, Non-Ventilated, K-13, Three-phase, PV: 480V, Taps: 2 at +2.5% FCAN, 4 at -2.5% FCBN, SV: 208Y/120V, 80°C, 15 kVA, Cu windings, Elec. Shield, Frame: 915DN
Specifications
Transformer Voltage Phases
Three Phase
Transformer VoltAmp
15 Kva
Manufacturer
Eaton
Component
Non-Ventilated Transformer
Transformer Primary Voltage In
480V
Transformer Secondary Voltage Out
208Y/120V
Frequency Rating
60 Hz
Tap Size
4 At -2.5% FCBN
Tap Size
2 At +2.5% FCAN
Frame
915DN
Features
Compliant to DOE 2016 and NEMA TP-1 efficiency standards, and transformers with other efficiency requirements
Specially designed to withstand the harmful overheating effects caused by harmonics generated by nonlinear (non-sinusoidal) loads
Neutral bus size configured to accommodate at least 200% of the rated current compensates for increased neutral currents found in non-linear loads, thus reducing heat
Electrostatic shield reduces transient noise in the system which may affect sensitive computer loads
Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard, to provide compliance with NEC 450.10(A)
Custom K-Factors available through the Flex Center
