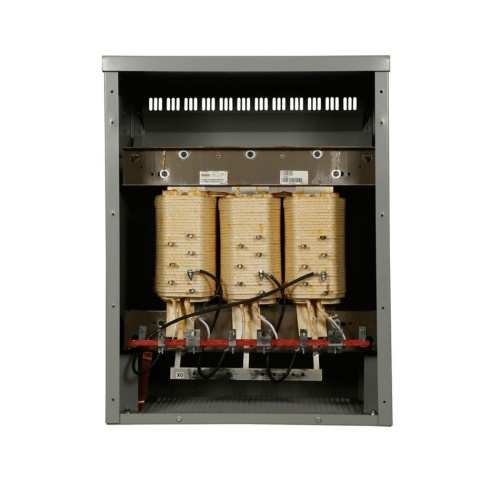

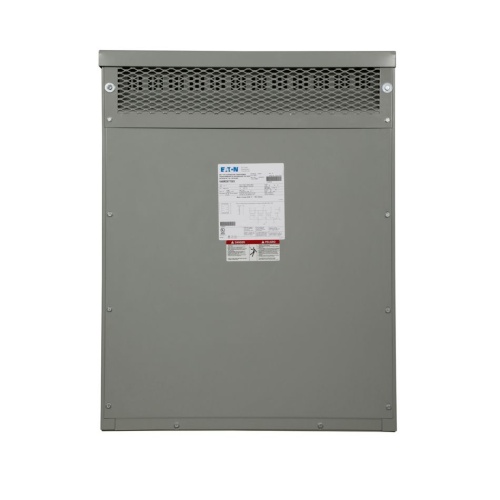

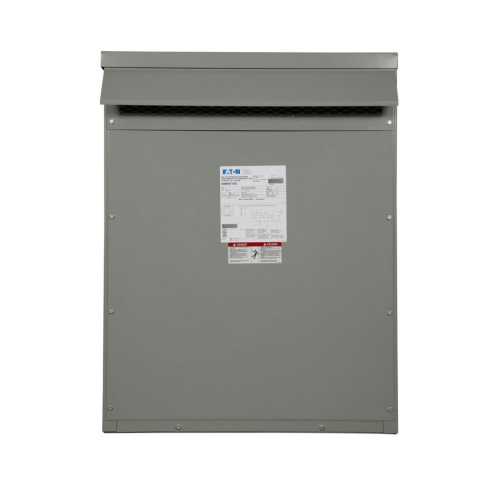

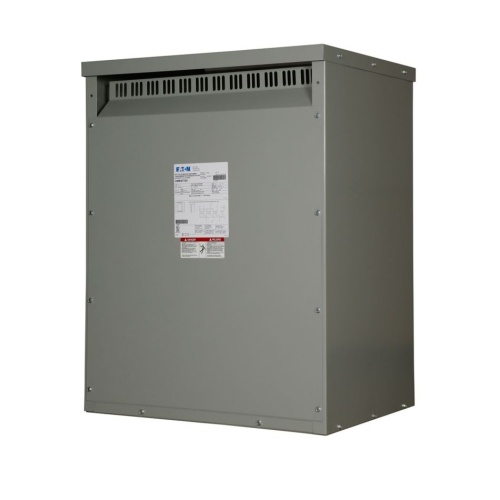

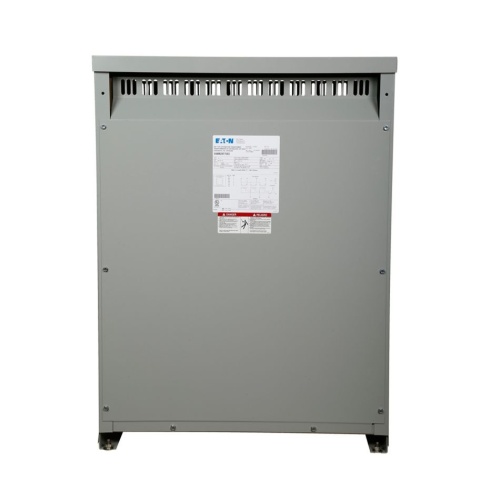

Eaton MD34E66 Drive Isolation Transformer - Three Phase, 34 kVA
Normally In Stock
Code: 444600
Eaton MD34E66 - Three Phase - Max Input: 460V - Max Output: 380Y/220V - 34 kVA - Aluminum Windings
Condition: New
Usually ships Same Day or Next Day$6194.02
Sale Price
$5161.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton MD34E66 - Drive Isolation Transformer, Ventilated, Dry Type Distribution, DT-3, Three-phase, PV: 460 delta, Taps: 1 at +5% FCAN, 1 at -5% FCBN, SV: 380Y/220, 150°C, 34 kVA, Al windings, Frame: 912B, uses WS38
Specifications
Transformer Voltage Phases
Three Phase
Transformer VoltAmp
34 Kva
Manufacturer
Eaton
Component
Drive Isolation Transformer
Transformer Secondary Voltage Out
380Y/220V
Transformer Primary Voltage In
460V
Frequency Rating
60 Hz
Tap Size
1 At +5% FCAN
Frame
912B
Tap Size
1 At -5% FCBN
Features
Thermal sensors embedded in coils can be wired to provide a signal to remote locations, indicating potential heating problems within the transformer coils
Get fast and easy connection with front accessible primary and secondary terminals
Easily identify terminals with clear labeling
Reduce installation time with slotted screw mounting holes in enclosure and cover
Reduce noise levels to meet NEMA ST-20 with sound dampening pads that isolate the core and coil from the case
