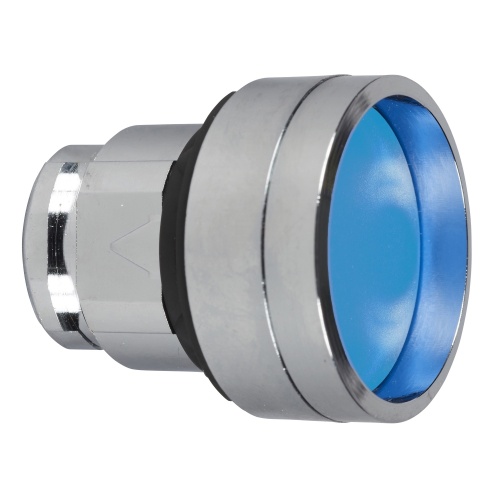

Schneider Electric ZB4BA66 Harmony 22 mm Round Blue Chromium plated metal Push Button Non-Illuminated Recessed Modular Head
Normally In Stock
Code: 44447
Schneider Electric ZB4BA66 Harmony 22 mm Round Blue Chromium plated metal Push Button that is Non-Illuminated with a Recessed profile. This product is a Modular Head and and is IP 69 rated and UL 508 certified.
Condition: New
Usually ships Same Day or Next Day$60.79
Sale Price
$50.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric ZB4BA66 Harmony 22 mm Round Blue Chromium plated metal Non-Illuminated Push Button Modular Head with a Recessed profile is made of high quality material and is designed to be simple and flexible. Has Spring return functionality. This product is IP 69 and UL 508 rated and is Unmarked.
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Color
Blue
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) IP Rating
IP 69
Sub Component
Head
Manufacturer
Schneider Electric
Component
Accessories
Features
This Harmony XB4, recessed high guard blue button head operates with a spring return / impulse mechanism
This button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head
It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly and is clearly distinguishable visually at a distance thanks to its clear color
It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66
It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance

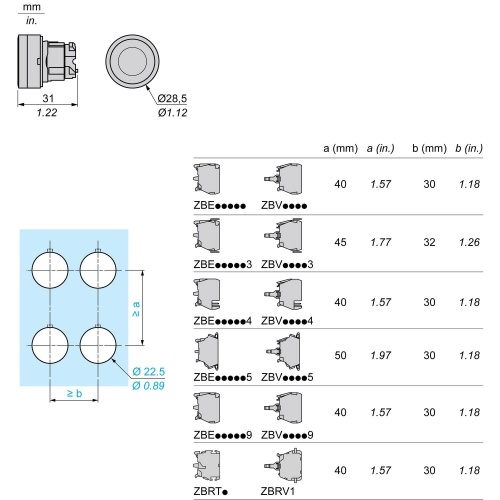

It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery
Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
