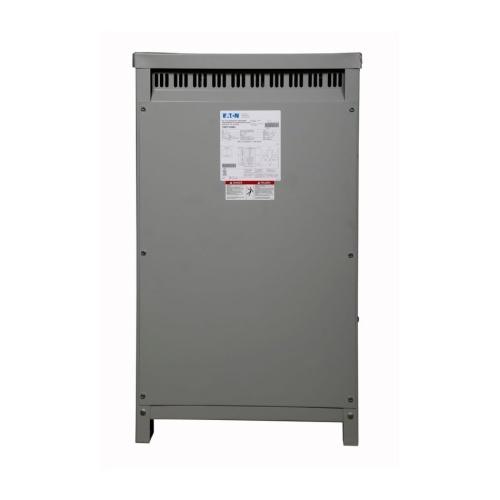

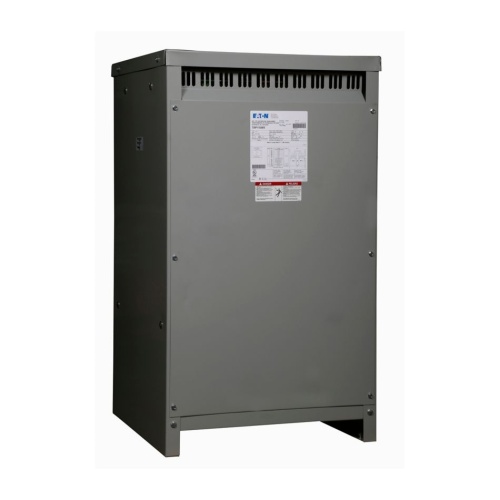

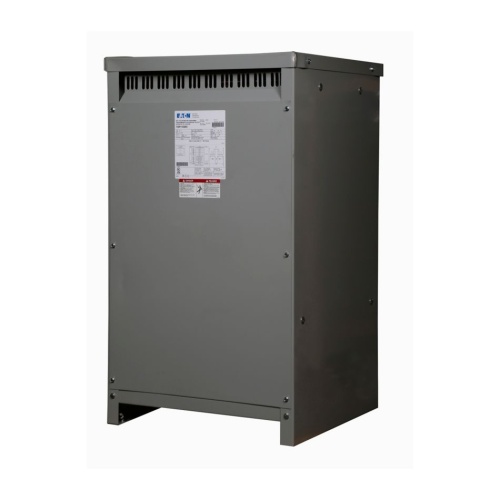

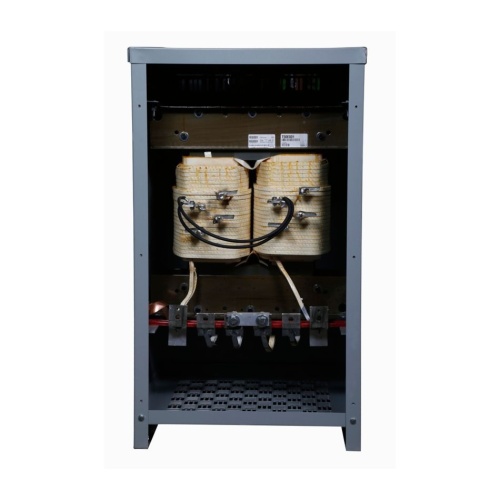

Eaton T29M11S05 Ventilated Transformer - Single Phase, 5 kVA
Normally In Stock
Code: 442494
Eaton T29M11S05 - Single Phase - Max Input: 208V - Max Output: 240V - 5 kVA - 60 Hz - 30.3" x 16.9" x 15.8" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$6204.06
Sale Price
$5170.05
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton T29M11S05 - General-Purpose Transformer - Ventilated - Dry Type Distribution - DS-3 - Single-phase - PV: 208V - Taps: 2 at +2.5% FCAN - 4 at -2.5% FCBN - SV: 120/240V - 150°C - 5 kVA - Al windings - Frame: 815 - uses WS15
Specifications
Transformer Voltage Phases
Single Phase
Transformer VoltAmp
5 Kva
Manufacturer
Eaton
Component
Ventilated Transformer
Transformer Secondary Voltage Out
120V
Transformer Secondary Voltage Out
240V
Transformer Primary Voltage In
208V
Coil Material
Aluminum
Frequency Rating
60 Hz
Tap Size
4 At -2.5% FCBN
Tap Size
2 At +2.5% FCAN
Frame
815
Features
Includes transformers with DOE 2016 and NEMA TP-1 efficiency requirements, and transformers with other efficiency requirements
Ventilated dry-type distribution transformers provide options in aluminum or copper windings
Available in 150 °C, 115 °C, and 80 °C temperature rise
Optional low-sound 3 dB and 5 dB below NEMA ST-20 standard
Available in 60 and 50 Hz
NEMA 2 standard enclosures, NEMA 3R with field-installed weathershields
Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard, to provide compliance with NEC 450.10(A)
